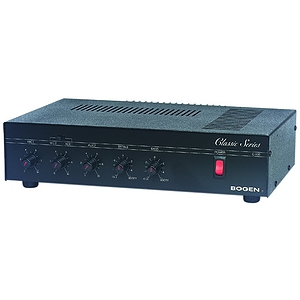

Bogen C60 Classic Series 4 Input Public Address Mixer/Amplifier - 60 Watt
Rollover image for closeup

Bogen C60 Classic Series 4 Input Public Address Mixer/Amplifier - 60 Watt

Item #: MP.C60

List Price: $675.22
Our Price:
$414.35 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by Bogen

Public Address Amp/Mixer. Made by Bogen. (MP.C60)

Free Shipping on this item, and most items in same order also ship free

In Stock
Usually ships within 1-2 business days

Found in:  PA Systems



Bogen's Classic Series mixer amplifiers allow mixing of microphone, telephone, and auxiliary sources. Screw terminals provide output to low impedance and transformer-coupled speakers. Each of the 4 inputs has its own volume control. Additional features include treble/bass control, aux muting, vox muting, and audio output.

Features:

  • 3 models: 35 Watt / 60 Watt / 100 Watt
  • 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
  • Each input controlled by an independent volume control
  • Treble and bass controls
  • AUX muting by external contact closure for pushto-talk microphones
  • TEL input for telephone paging applications
  • TEL input voice-activated (VOX) mute over AUX input
  • Variable threshold for TEL input voice-activated AUX mute
  • Audio output for tape recorder or booster amplifier
  • Outputs for 4-ohm (direct), 8-ohm, and 16-ohm, 25V and 70V speaker systems (transformer coupled)
  • Output jack to connect a tape recorder or booster amplifier
  • Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
  • Thermal protection and electronic shutdown
  • Rack mountable with accessory mounting kit (model RPK50)
  • UL and CSA listed


Specifications
    Power Output (RMS): 60 Watt

    Frequency Response & Distortion:
      Transformer 70 - 16 kHz (± 2 dB) @ 1% max
      4-Ohm Direct Output 20 - 20 kHz (± 1 dB) @ 0.5% max


    Hum and Noise:
      MIC 55 dB below rated output
      AUX 70 dB below rated output
      TEL 70 dB below rated output


    Input Sensitivity:
      MIC Lo-Z Balanced 600iV
      AUX 85mV
      TEL 75mV


    Outputs:
      8 ohms, 16 ohms, 25V, 70V transformerisolated balanced or unbalanced
      4 ohms direct unbalanced


    Output Connections:
      Screw terminal strip, TAPE/BOOSTER jack
      WMT1A jack (requires accessory transformer)


    Input Connections: Screw terminals for MIC and TEL, two AUX Hi-Z jacks

    Controls: MIC1, MIC2/AUX (switch selected), AUX 2, BASS, TREBLE, TEL, VOX

    Tone Control:
      Treble, ±11 dB @ 10 kHz
      Bass ±11 dB @ 100 Hz


    Power Requirements: 120V AC, 60 Hz - 148W;

    Dimensions: 14-1/2" W x 3-3/4" H x 11" D

    Shipping Weight: 18 lb.
