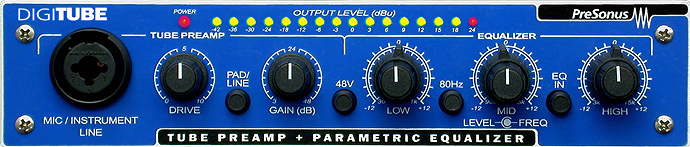

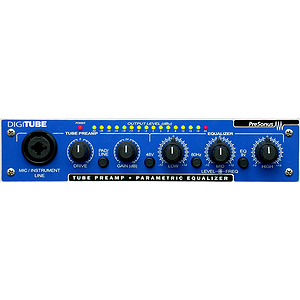

PreSonus DigiTUBE Microphone Tube Preamplifier w/ Digital Output

Compare To: $199.00 PreSonus BlueTube DP Mic Preamp $99.95 PreSonus TubePre Tube Preamp $89.00 Samson C-Valve Tube Microphone Preamp

Born from the award winning BlueTUBE, the DigiTUBE adds a three band sweepable EQ and 24-bit Digital Output. The mic preamp features 70dB of gain with 22dB of Headroom. The DigiTUBE provides a three band EQ which is fully sweepable with overlapping bands for maximum tone shaping. A 24-bit Digital output via S/PDIF makes the Digitube the perfect front end for soundcards and digital recorders. The DigiTUBE offers XLR analog output and TRS Insert point for patching in a compressor or other outboard effect units. U Rack.

Features:

• Tube Preamp with 70dB of Gain and 22dB of Headroom
• Fully Sweepable Three-Band EQ with Bypass Switch
• Insert Point after Mic Preamp for Patching in a Compressor/Limiter or other Outboard Device
• 24-Bit Digital Output via S/PDIF
• Word Clock Input and Output via BNC Connectors
• Rackmountable via Optional BMRA Rack Adaptor

Technical Specifications

Input

• XLR Impedance 5k W
• High-Z Impedance 1Meg W
• Connector Neutrik™ Combo

Front Panel Controls

• Tube Drive 0dB to +40dB
• -20 dB Pad
• +48V Phantom Power
• EQ In/Out Selector
• 80Hz High-Pass Filter
• Low EQ Band (+/-12dB) 30Hz-1kHz
• Mid EQ Band (+/-12dB) 900Hz-5kHz
• High EQ Band (+/-12dB) 3kHz-15kHz

Rear Panel Controls

• Sample Rate Selector 44.1kHz/48kHz
• Internal/External Clock 44.1kHz/48kHz only
• BNC External Clock Input

Output

• Analog XLR Balanced 51W Impedance
• Analog 1/4" TRS Insert Tip Out
• Ring In
• Sleeve GND
• Digital S/PDIF (RCA Connector)

Meters

• Power Indicator LED
• Eight-Segment LED -28dBu to +18dBu

Power Supply

• Power 15W
• Type Linear
• Input 18V AC/1000mA

Performance

• THD+Noise (Unweighted) 0.05% at 0dB Tube Drive, 10% at 30dB Tube Drive
• Noise Floor -94dB
• Signal To Noise >90dB
• Power Supply Rejection >98dB
• Amplifier Type Dual-Servo

Physical

• Weight 8lbs
• Dimensions 8" x 5" x 1.75"
• Mounting Universal Rack Tray Insert
• Chassis SteelPanel Brushed Aluminum
