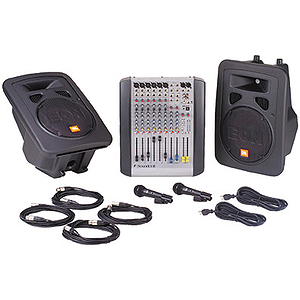

JBL EON E-System 10 Complete Portable Sound Reinforcement/PA System

Pre-packaged, complete sound reinforcement systems featuring JBL EON powered speakers, Soundcraft E-Series mixing consoles and AKG microphones -- a complete, compact sound reinforcement system so good that no one company could build it all!!

The E-System 10, featuring two EON10 G2 powered speakers, a Soundcraft E6 sound reinforcement mixer, and two AKG D2000S dynamic hypercardioid microphones, is a complete, integrated sound system intended for a wide range of applications in reinforcement of music and speech.

Key Features:
The E-System 10 is just that - a system. From the top manufacturers in the pro audio industry, each component has been selected to support and complement the others.

JBL EON10 G2 Speakers

• The second generation of one of the most successful and influential professional speaker systems ever.
• 10" Differential Drive™ low-frequency driver with dual neodymium magnet for light weight and reduced distortion.
• 1" JBL compression driver with titanium diaphragm and ferro-fluid cooling.
• 125 watts low-frequency and 50 watts high-frequency (bi-amplified) - actual power delivered to the drivers.
• Three inputs. One balanced mic/line selectable input and one dual-channel, 1/4" TRS phone linelevel inputs.
• Balanced loop-through/mix output. "Daisychain" additional EON speakers or send the mixed output to a mixing console.
• 60° x 90° (nominal) constant directivity horn.
• Thermomaster® Total Thermal Management System®. A single piece, cast-aluminum baffle integrates the woofer frame, horn, and amplifier heat sink. Air movement in the finned ports dissipates heat - no internal or external cooling fans are required.
• Rugged, light-weight, black co-polymer enclosure.
• Integral 35 mm pole mount receptacle with securing thumb screw.
• Multi-angle enclosure for front of house or stage monitor application.

Soundcraft E6 Mixer

• 6 mic/line input channels
• 2 stereo input channels
• Three-band channel EQ with variable mid-frequency for precise tailoring of the sound
• Precision, ultra-linear mic pre-amps
• Two auxiliary monitor or effects busses with one pre/post selectable
• True professional +48V phantom power
• Smooth 100 mm faders for precise control of your mix
• Individual channel mute switches so you can mute an input without disturbing your mix
• Internal power supply

D2000S Microphones
Rounding out the system is a pair of AKG D2000S handheld, dynamic hypercardioid microphones. These microphones have been selected to do a great job in a variety of applications from speech and vocals to instrument pick up.

System Includes:

• TWO (2) x JBL EON10 G2 Speakers
• Soundcraft E6 Mixer
• TWO (2) x AKG D2000S Microphones
• FOUR (4) x 25 ft. (7.6m) XLR/M to XLR/F Cables
• JBL EON10 G2 User Guide
• Soundcraft E6 User Guide
