JBL EON E-System 15 Complete Portable Sound Reinforcement/PA System

Pre-packaged, complete sound reinforcement systems featuring JBL EON powered speakers, Soundcraft E-Series mixing consoles and AKG microphones -- a complete, compact sound reinforcement system so good that no one company could build it all!!

The E-System 15, featuring two EON15 G2 powered speakers, a Soundcraft E8 sound reinforcement mixer, and two AKG D2000S dynamic hypercardioid microphones, is a complete, integrated sound system intended for a wide range of applications in reinforcement of music and speech.

Key Features:
The E-System 15 is just that - a system. From the top manufacturers in the pro audio industry, each component has been selected to support and complement the others.

JBL EON15 G2 Speakers

• The second generation of one of the most successful and influential professional speaker systems ever.
• 15" Differential Drive™ low-frequency driver with dual neodymium magnet for light weight and reduced distortion.
• 1" (throat diameter) JBL compression driver with 1.75" titanium diaphragm and ferro-fluid cooling.
• 300 watts low-frequency and 100 watts high-frequency (bi-amplified)-actual power delivered to the drivers.
• Built-in 3-input mixer. One balanced mic/line input, two balanced 1/4" phone line-level inputs.
• Two-band equalization.
• Balanced loop-through/mix output. "Daisychain" additional EON speakers or send the mixed output to a mixing console.
• 60° x 90° (nominal) constant directivity horn.
• Thermomaster® Total Thermal Management System®. A single piece, cast-aluminum baffle integrates woofer frame, horn, and amplifier heat sink. Air movement in the finned ports dissipates heat-no internal or external cooling fans are required.
• Rugged, light-weight, black co-polymer enclosure.
• Integral 35 mm pole mount receptacle with securing thumb screw.
• Multi-angle enclosure for front of house or stage monitor application.
• Tailored dynamic processing protects amplifiers and speakers from being over-driven without producing extreme changes in frequency response as level varies.
• Extended low-frequency performance. Delivers powerful bass to below 40 Hz.

Soundcraft E8 Mixer

• 8 mic/line input channels
• 2 stereo input channels
• Three-band channel EQ with variable midfrequency for precise tailoring of the sound
• Precision, ultra-linear mic pre-amps
• Two auxiliary monitor or effects busses with pre/post settings
• True professional +48V phantom power
• Smooth 100 mm faders for precise control of your mix
• Individual channel mute switches so you can mute an input without disturbing your mix
• Internal power supply

AKG D2000S Microphones
Rounding out the system is a pair of AKG D2000S handheld, dynamic hypercardioid microphones. These microphones have been selected to do a great job in a variety of applications from speech and vocals to instrument pick up.

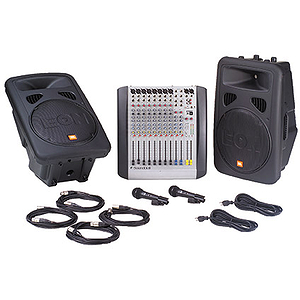

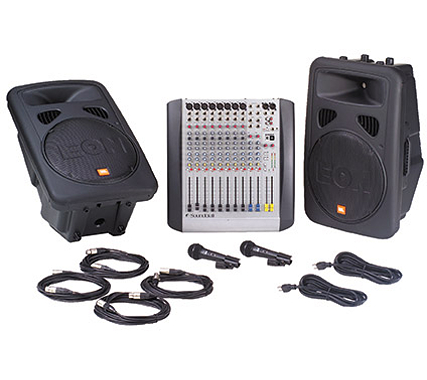

System Includes:

• TWO (2) x JBL EON15 G2 Speakers
• Soundcraft E8 Mixer
• TWO (2) x AKG D2000S Microphones
• FOUR (4) x 25 ft. (7.6m) XLR/M to XLR/F Cables
• JBL EON15 G2 User Guide
• Soundcraft E8 User Guide
