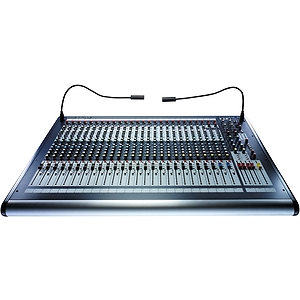

The GB2 is the latest addition to the Soundcraft GB Series, featuring 4 group busses configured as 2 stereo subgroups and an integral 6 x 2 matrix.
Available in 16, 24 and 32 channel
configurations, the GB2 is designed for
installed sound and A/V applications that
don't require all the sophisticated
functionality of the GB4 and GB8. However
the GB2 is a genuine GB Series console in
every respect, with sound quality assured by
GB30 Mic Pre and Equaliser designs, and
reliability by the same rugged build quality
that has made the GB4 and GB8 so
dependable in demanding professional
Along with six Aux busses and an integral
6 x 2 matrix, four subgroups are provided as
two stereo pairs, with a unique facility for
adjusting the width of the stereo signal
across the stereo mix. The channel pan
settings are retained on the group outputs,
while the degree of stereo separation to the
mix bus is independently adjustable from full
stereo through to mono.
The GB2 also features two stereo input
channels, with separate mic and line inputs.
In normal use, the mic inputs are routed to
the local channel and the line inputs act as
a stereo return to the mix bus. Selecting the
line input to the local channel overrides the
Houses of Worship
- 16-Channel / 24-Channel / 32-Channel
- 12 busses
- 2 full feature stereo channels
- 2 stereo returns (on stereo channels)
- 6 Aux sends
- 4 sub groups (paired)
- 6x2 output matrix
- GB30 mic preamp and precision equalisation
- Direct outputs on every channel
- Talkback facility
- 100mm faders
- Switchable 48V phantom powering on every
- 100Hz high pass filter
- 12-segment LED metering
- Record output
Even volunteer engineers want to be free to participate in praise and celebration, so the less time spent concentrating on the technology the more time they have to be part of the service.
Thanks to clear and precise control layouts, mixing on a Soundcraft desk is not only easy, the highest sound quality for which Soundcraft is famous makes the whole experience a pleasure.Music Venues
With the large number of mix engineers who pass through venues supporting their talent, the need to offer a console that's easy to use if you see it for the first time is paramount. Not only that, it has to sound good, and be able to cope with whatever demands the sound system for the act has.
Soundcraft has a legendary reputation for no-frills user interfaces, with clear and concise control layouts and a user-friendliness other consoles can only aspire to.Musicians and Bands
Every singer or band wants to sound their best on stage, while not having to worry about complex equipment to control.
Soundcraft's range of portable PA mixers delivers the sound you want, thanks to microphone preamps and equalizers designed by audio guru and Souncraft founder Graham Blyth, and recognized as the ultimate clean-path designs.Theaters
A Compact size yet with the capability to feed mixes to different zones, handle high numbers of microphones and thrill the audience with a clear sound, Soundcraft mixers have been a constant part of the Theater scene for many years.Touring
Whether you're still an analogue console fan or moved on to digital, Soundcraft has a console offering for tour sound engineers for all event sizes.
Soundcraft's reputation of quality and reliability has been earned over 35 years since first mixer-in-a-flightcase, the Series 1. Mic preamps that won't overload so easy, EQ's that sound smooth and give you total control, and layouts that any engineer can mix on within minutes - yes, even digital consoles that are easy to use thanks to patented technologies like VistonicsTM and FaderGlowTM.
