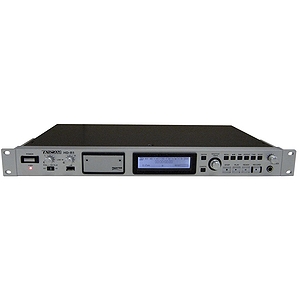

Tascam HD-R1Two-Channel Solid State Recorder

For more than 30 years, TASCAM has developed products for every segment of the sound and music industry. From the high-end audio professional in a major post-production studio to the novice or hobbyist at home, TASCAM is everywhere.

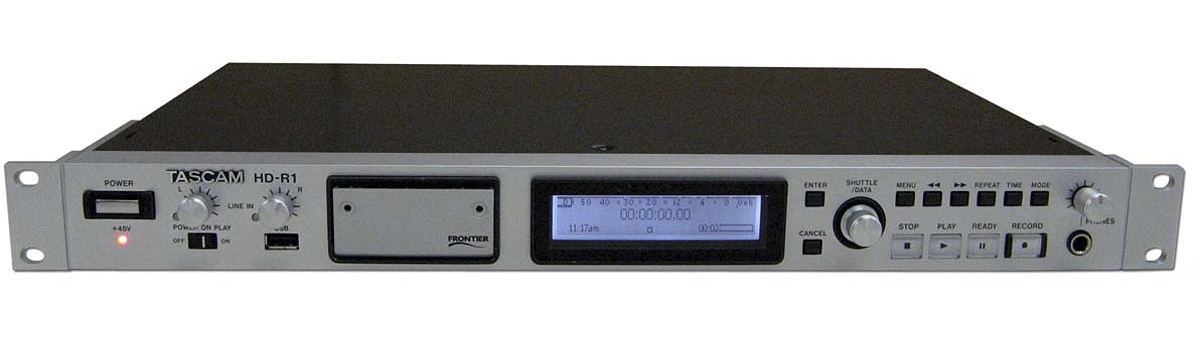

The HD-R1 Solid State Recorder is a two-channel, single rack-mount recording and playback device created with the sound contractor in mind.

Utilizing the highly reliable Compact Flash Card the HD-R1 records 44.1/48 KHz, 16/24 bit PCM or MP3 files. The ability to control the HD-R1 remotely is provided via RS-232, Parallel, and RJ45 100Mbit Ethernet. File transfer can be accomplished via Ethernet and/or USB (type "A" connector).

To further enhance the HD-R1's feature set, Mic preamps (w/20dB pad) and Phantom Power (rear-panel selectable) have been included. The HD-R1 offers a variety of contractor-friendly I/O options; such as, Unbalanced (RCA), Balanced (XLR and Euroblock), and S/PDIF Digital (Coaxial and Optical).

And of course... the traditional source device features are Power-on-Play, Front Panel Rotary Input Level Controls, Headphone Jack with level control, and a variety of Playback Modes.

Features:

• 1U Rack-mount Solid-State Recorder
• Compact Flash Card
• USB host interface for USB Flash Cards
• Audio data formats: PCM (16/24 bit), MP3
• Samplig rates supported: 44.1, 48KHz
• Mic/Line XLR (with 20dB pad) balanced I/O
• Phantom Power (rear panel switch and front LED indicator)
• Euroblock terminal (Input and Output)
• Unbalanced RCA (Input and Output)
• Front panel rotary input level controls
• RS-232 interface for control
• RJ45 100Mbit/s Ethernet interface for file transfer and control
• D-sub25 parallel remote control interface
• 16 Direct Play via D=SUb25 pin parallel interface
• Power on play (front panel selectable)
• S/PDIF Digital In/Out (Coaxial and Optical)
• Headphone Jack w/level control
• Input through and Auto Fade function
• Input monitoring / mixing of live stereo input along with playback
• Program Play, Folder Play, Shuffle Play, Interval Play modes, etc...
