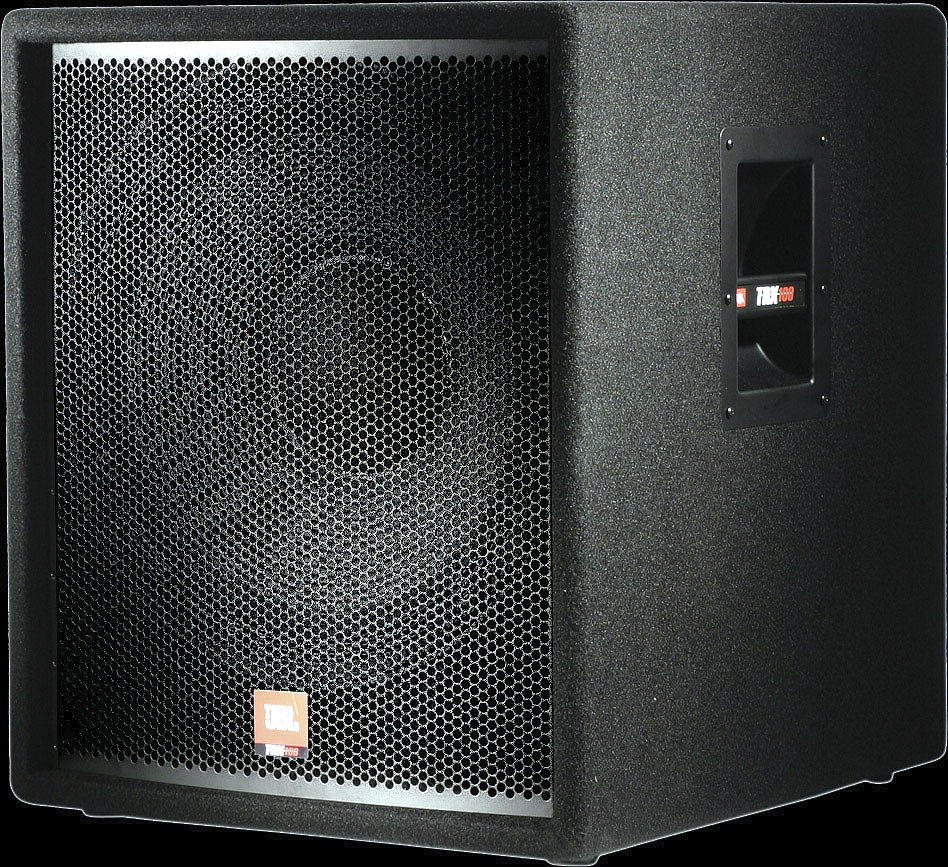

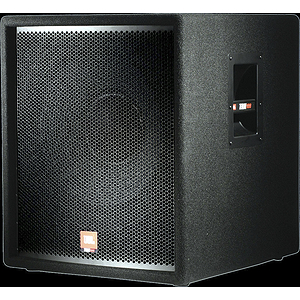

JBL JRX118S 18" Compact Subwoofer
Rollover image for closeup

JBL JRX118S 18" Compact Subwoofer

Item #: MP.JRX118S

List Price: $619.00
Our Price:
$499.00 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by JBL

Subwoofer. Made by JBL. (MP.JRX118S)

Free Shipping on this item, and most items in same order also ship free

Temporarily Out of Stock -- Notify Me when Back in Stock

Found in:  Passive LoudspeakersTheater Speakers

Goes With -- Check a box to also include that item in cart

JBL JRX100 Series Speakers deliver the performance and prestige JBL Speakers are known for at an affordable price point. With performance, value and popular price points, JRX100 speakers deliver unprecedented value!

We've all heard shows where the sound was plenty loud and the music was kicking but there just wasn't any energy. Could be that the problem was inadequate bass. If your goal is to get the crowd out on the dance floor, there's no better way to do it than with plenty of tight, punchy, powerful bass. And there's no better way to get bass than with a JBL subwoofer.

The JRX118S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil. It's rated at 350 watts (continuous) and 1400 watts (peak) - and that's based on JBL Professional's 100 hour torture test.


  • Frequency Range (-10 dB): 38 Hz - 300 Hz
  • Frequency Response (±3 dB): 55 Hz - 300 Hz
  • Sensitivity : 96 dB SPL
  • Nominal Impedence: 4 ohms
  • *Power Capacity: 350 watts
  • *Peak Power Capacity: 1400 watts
  • Recommended Amplifier Power: 350 watts to 700 watts into 4 ohms
  • Recommended Crossover Settings: 30 Hz HPF, 24 dB / octave; 80 - 100 Hz LPF, 24 dB / octave
  • Maximum SPL: 127 dB
  • Dimensions (H x W x D): 597 mm x 516 mm x 559 mm (23.5 in x 20.3 in x 22 in)
  • Weight: 32.2 kg (71 lbs)
  • Low Frequency Driver: JBL 2043-G
  • Input Connectors: Neutrik® Speakon® NL-4 (x2); 1/4" TS phone jack (x1); parallel

* "Power Capacity" and "Peak Power Capacity" ratings are based on the average and peak power capacity of product samples subjected to a 100 hour power test using random noise with a 6 dB crest factor, in accordance with IEC standards.


Progressive Transition™ Waveguide
Just one example of JBL's innovation is the PT™ Waveguide design. For decades, horn designers were faced with trade-offs between well controlled coverage, low distortion, and good frequency response. JBL developed proprietary algorithms which give our PT Waveguides the best performance in all three areas.

JRX100 doesn't scrimp on the hardware either. All the JRX models use tough, non-resonant all-steel handles with big, beefy bars. And the entire baffle (not just the woofer) is protected by an 18 gauge steel grille.

JBL Drivers
All woofers and compression drivers used in JRX100 are manufactured in Northridge, California by JBL Professionals.

Enclosure Construction
Competitive systems typically use particle board construction and rely entirely on glue to hold it together. For JRX100, we selected a more rugged and acoustically superior 3/4" MDF material for the enclosures. And to make sure they stay together, we constructed them with advanced adhesives and closely spaced mechanical fasteners. Not only are the cabinets rugged, but the denser enclosure walls are more riged, delivering better low end as a result

Feedback, dropped microphones, pushing the amps into clipping - all these things can quickly destroy even the best high-frequency drivers. That's why JBL JRX100 speakers include SonicGuard™ protection. SonicGuard circuitry absorbs excess energy without interrupting the performance. No circuit breakers to reset, no fuses to replace and no "poly-switches" to degrade sound quality.
