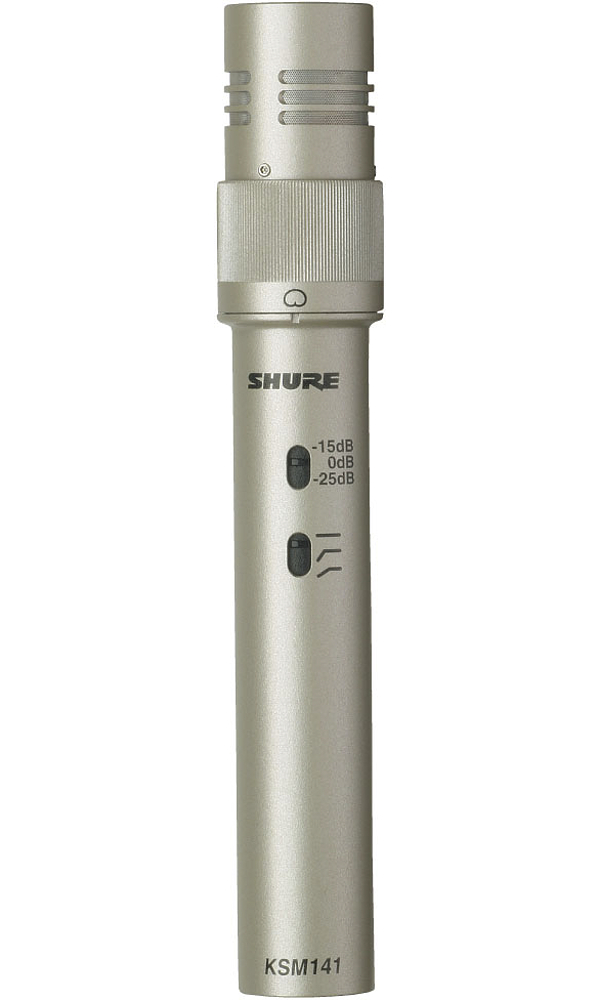

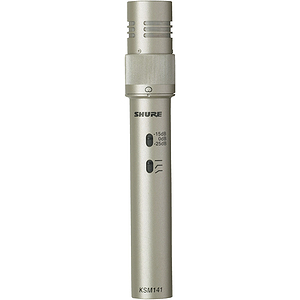

Shure KSM141/SL Dual Pattern Condenser Instrument Microphone - Stereo Pair

KSM141/SL ST PAIR Includes:

2 KSM137/SL Mics
2 Windscreens
Carrying case

The Shure KSM141 is an end-addressed condenser microphone with mechanically switching dual polar patterns (cardioid and omnidirectional). Designed for studio use, yet rugged enough for live applications, the KSM141 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording musical instruments.

The KSM141/SL comes with windscreen and carrying case, and has a champagne finish.

Features:

• A mechanical polar pattern switch for highly consistent cardioid and true omnidirectional polar patterns. Provides flexibility in a wide variety of recording applications
• Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass MylarŪ diaphragm for superior transient response
• Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
• Premium electronic components, including gold-plated internal and external connectors
• Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
• Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
• Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
• Three-position switchable low-frequency filter to reduce background noise and counteract proximity effect

Applications:

• Acoustic instruments -- such as piano, guitar, drums, percussion, strings
• Wind instruments -- brass and woodwind
• Low frequency instruments -- such as double bass, electric bass, kick drum
• Overhead miking -- drums or percussion
• Ensembles -- choral or orchestral
• Room ambiance pick-up -- guitar amplifier or drums

Specifications:

Cartridge Type
Permanently Biased Condenser

Frequency Response
20 to 20,000 Hz

  view larger

Directional Polar Pattern
Cardioid/Omnidirectional

Output Impedance
150 ohms (actual)

Attenuation Switch
0 dB, 15 dB, or 25 dB attenuation

Low Frequency Response Switch
Flat; -6 db/octave below 115 Hz;
-18 dB/octave below 80 Hz

Phantom Power
48 Vdc +/- 4 Vdc (IEC­268­15/DIN 45 596), positive pins 2 and 3

Current Drain
4.65 mA typical at 48 Vdc

Common Mode Rejection
>50 dB, 20 Hz to 20 kHz

Polarity
Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3

Dimensions and Weight
20 mm (0.8 in.) diameter, 146 mm (5.75 in.) long;
156 grams (5.5 oz.)

Sensitivity (typical, at 1000 Hz; 1 Pa = 94 dB SPL)
­-37 dBV/Pa

Self­noise (typical, equivalent SPL; A-weighted, IEC 651)
14 dB

Maximum SPL
5000 ohm load (Attenuator on): 145 (160, 170) dB
2500 ohm load (Attenuator on): 139 (154, 164) dB
1000 ohm load (Attenuator on): 134 (149, 159) dB

Output Clipping Level*
5000 ohm load: 15 dBV
2500 ohm load: 9 dBV
1000 ohm load: 3 dBV

Dynamic Range
5000 ohm load: 131 dB
2500 ohm load: 125 dB
1000 ohm load: 120 dB

Signal to Noise Ratio**
80 dB

*20 Hz to 20 kHz; THD < 1%. THD of the microphone preamplifier when applied input signal is equivalent to the cartridge output at specified SPL.
**S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted
