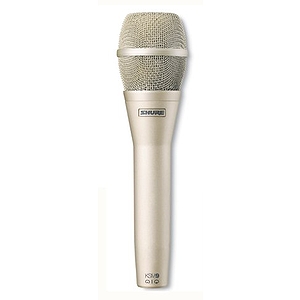

Shure KSM9-SL Cardioid/Supercardioid Condenser Vocal Microphone - Champagne/Silver Finish

The KSM9 is a premium vocal condenser microphone that captures vocal subtlety with extraordinary detail to deliver clear articulation, functional flexibility and precise vocal reproduction for live performance.

Engineered to exacting standards, the KSM9 reveals nuance and subtlety in a microphone optimized for the most demanding live environments. With its dual diaphragm design and switchable polar patterns, the KSM9 is the choice for the world's most accomplished vocal performances. Supercardioid and Cardioid, Condenser.

KSM9 microphones offer exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect. With wired and wireless options and a choice of champagne and charcoal grey finishes, KSM9 offers the best combination for every performance. Shure UHF-R® Wireless Systems feature KSM9 as the premier choice in handheld vocal microphones. KSM9 microphones are built to exacting Shure endurance standards, renowned worldwide and proven night after night, center stage.

Features:

• Dual gold layered, low-mass Mylar® diaphragm design
• Switchable polar patterns (supercardioid and cardioid)
• Advanced suspension shock mount
• Premium electronic components including Class A transformerless preamplifier circuitry
• Gold-plated internal and external connectors, including XLR Output Durable aluminum housing
• Champagne or charcoal grey finish
• Full-range frequency response (50Hz to 20kHz)
• Aluminum carrying case

Cardioid Response Curve





Supercardioid Response Curve





Cartridge Type

Condenser (Electret Biased)

Frequency Response

50 to 20,000 Hz

Output Impedance

150 ohms (actual)

Phantom Power

48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3

Current Drain

5.2 mA typical at 48 Vdc

Common Mode Rejection

>60 dB, 50 Hz to 20 kHz

Polarity

Positive pressure on front diaphragm produces positive voltage on output pin 2 relative to pin 3

Directional Polar Patterns

Cardioid

Supercardioid

Sensitivity (typical; at 1000 Hz; 1 Pa = 94 dB SPL)

-51 dBV/Pa

Self-noise (typical, equivalent SPL; A-weighted, IEC 651)

22 dB

Maximum SPL @ 1000 Hz

2500 ohm load: 152 dB

1000 ohm load: 152 dB

Output Clipping Level*

2500 ohm load: 6.7 dBV

1000 ohm load: 6.0 dBV

Dynamic Range

2500 ohm load: 130 dB

1000 ohm load: 130 dB

Signal to Noise ratio**

72 dB

Dimensions and Weight

49 mm (1 15/16 in.) maximum body diameter, 191 mm (7.5 in.) long; 300 grams (10.6 oz).

*100 Hz to 20 kHz;THD < 1%.

**S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted
