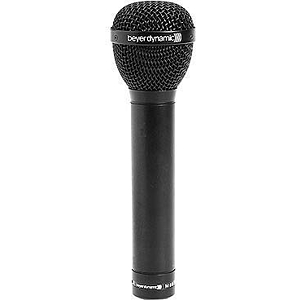

Beyerdynamic M 88 TG Dynamic Studio Microphone - Vocal/Bass Drum

Some products are born classics and the M 88 has to take centre-stage for being far ahead of its time when it was first introduced in the 1960`s. Incorporating a new low-mass diaphragm element, the M 88 TG has earned its place in history in the Kick Drum. Sound engineers have found that the lightning-fast transient response of the microphone reproduces the complex sound patterns of this instrument resulting in the tight `thump` without the need for complex signal processing. This characteristic works equally well on other instruments especially where intricate low frequencies and their harmonics need to be captured. The M 88 TG is one of the most frequently specified microphones by sound engineers worldwide and heralded a beyerdynamic contemporary classic as this microphone becomes renown for capturing emotive audio signals.

Features

• Extended frequency range with rising high end and exceptional bass reproduction
• High volume-before-feedback
• Integrated hum-buck coil
• High SPL handling capability
• Rugged construction
• Supplied with microphone clamp and storage bag

• Transducer type: Dynamic
• Operating principle: Pressure gradient
• Frequency response (close miking): 30 - 20,000 Hz
• Polar pattern: Hypercardioid
• Side attenuation: > 23 dB at 120°
• Open circuit voltage at 1 kHz (0dB = 1V/Pa): 2.9 mV/Pa ≡ -30.7 dBV
• Magnetic field suspension: >20 dB ≡ 50 Hz
• Nominal impedance: 200 Ω
• Diaphragm: Hostaphan®
• Case/finish: Brass
• Connector: 3-pin XLR
• Length: 181 mm
• Shaft diameter: 25.5 mm
• Head diameter: 48.5 mm
• Weight without cable: 320 g
