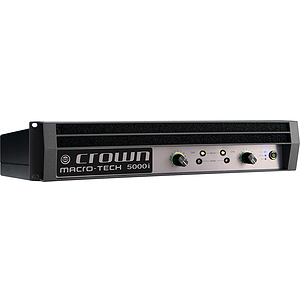

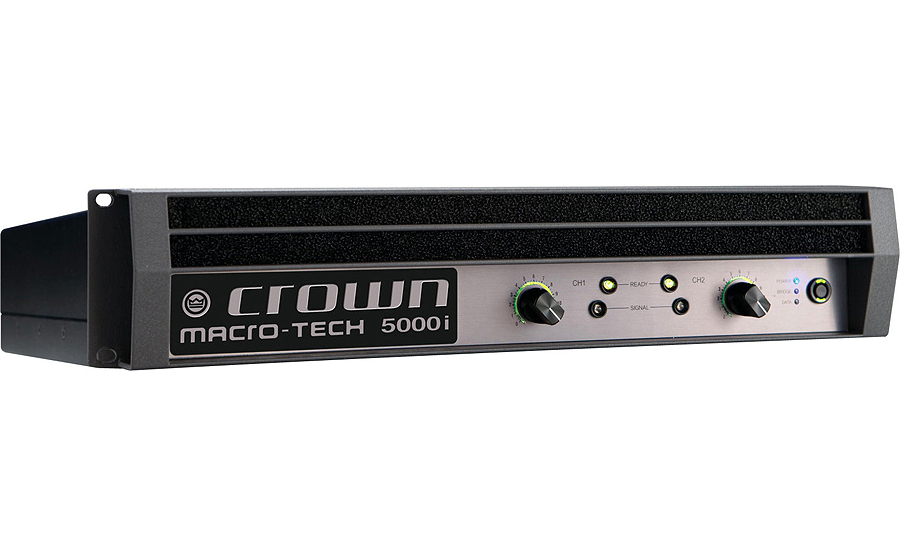

Crown MA-5000i Power Amplifier

Item #: MP.MA-5000I

Our Price:
$4467.75 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by Crown

Power Amp. Made by Crown. (MP.MA-5000I)

Free Shipping on this item, and most items in same order also ship free

In Stock
Usually ships same or next business day

Save for Later
Add To Wish List

Found in: Stage Power Amps, Studio Power Amplifiers

Goes With -- Check a box to also include that item in cart

On-Stage Stands SS7761B Universal Speaker Stand
$51.99

Hot Wires 50' Speaker Cable
$16.96

Samson Q4 CL Cardiod Dynamic Handheld Mic Pack
$29.00

Middle Atlantic Products Universal Half Rack Shelf
$29.75

Monster Pro Power FlexLamp w/XLR Connector
$49.95

Adam 16-Gauge 50' Speaker Cables
$31.99

Description
Customer Reviews
Estimated Arrival

*Please note: this is a special order item and cannot ship immediately*

Guaranteed minimum power in watts at 20 Hz-20 kHz with 0.35% THD:

• 2,565W (20 mS burst, 2-ohm dual per ch.)
• 1,800W (20 Hz-20 kHz, 2-ohm dual per ch.)
• 1,800W (1 kHz, 2-ohm dual per ch.)
• 2,000W (4-ohm dual per ch.)
• 1,250W (8-ohm dual per ch.)
• 3,600W (4-ohm bridge)
• 4,000W (8-ohm bridge)

Features

The Macro-Tech® i Series continues the Crown® Macro-Tech legacy of unparalleled sonic accuracy and detail, putting sound quality above all else

Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste

Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road

Global Power Supply - designed to deliver maximum power no matter what country you work in

Built-in load, line voltage, input and output monitoring

Standard Ethernet networking via System Architect® lets system operators monitor and control the amplifier from any location

Specifications

Frequency Response (at 1 watt, 20Hz - 20 kHz into 8 ohms): ± 0.25 dB
Signal to Noise Ratio below rated full-bandwidth power, A-weighted: > 108 dB
Total Harmonic Distortion (THD) at 1 watt into 8 ohms: < 0.1%
Total Harmonic Distortion (THD) Plus Noise at full rated power: < 0.35%, 20 Hz to 20 kHz
Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1, from full rated output to -30 dB: < 0.35%
Damping Factor (20 Hz to 100 Hz at 8 ohms) > 5000
Crosstalk (below rated power, 20 Hz to 1 kHz) > 80 dB
Common Mode Rejection (CMR) (20 Hz to 1 kHz): > 55 dB, typically > 70 dB
DC Output Offset (Shorted input): < ± 3 mV
Input Impedance (nominal): 10 kilohms balanced, 5 kilohms unbalanced
Maximum Input Level +20 dBu typical
Load Impedance (Note: Safe with all types of loads): Stereo; 1/2/4/8/16 ohms Bridge Mono; 2/4/8 ohms
Input Sensitivity (referenced to 8 ohm rated output): 1.4V, 32 dB gain, and 26 dB gain
Voltage Gain (referenced to 8 ohm rated output): 37.1 dB to 22.2 dB
Required AC Mains: Universal AC input, 100-240VAC , 50/60 Hz (±10%). Maximum AC mains voltage 264VAC.
AC Line Connector: Five cordsets supplied with amplifier
Cooling: Dual-zone, microprocessor controlled, continuously variable speed fans, front-to-back airflow
Front Panel: Cast aluminum with integrated handles
Weight: 28 pounds (12.7 kg) net, 36 pounds (16.3 kg) shipping
Dimensions (W x H x D): 19 in. (48.3 cm) W x 3.5 in. (8.9 cm) H x 16.2 in. (41.1 cm) D
Protection: Amplifier is protected against reactive loads, faults and shorts. If one channel experiences a catastrophic failure, the entire amplifier will shut down.
