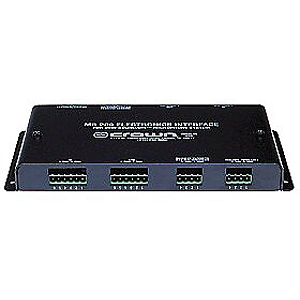

Crown MB-200 4-input Electronics Interface for Crown MB Series Mics

PLEASE NOTE THAT THE MB-200 IS AN ELECTRONICS INTERFACE DESIGNED SPECIFICALLY FOR CROWN'S MB-1, MB-2 AND MB-4E MICROPHONES!

The MB-200 is an electronics interface that powers up to four Crown mini-boundary(MB) microphones. This interface for four mics reduces the size and cost of the microphone system and reduces installation time.

The MB-200 provides programmable switching to turn the mic on or off if desired (switches not provided). Two microphones can be wired to each pluggable terminal block, which plugs into the interface. Pluggable terminal blocks are also provided for the balanced outputs on the interface, and for remote switch sensing. This model is identical to the MB-100 except that the MB-200 also has remote switch sensing via optical coupler

Features

• For use with Crown MB-1, MB-2 or MB-4E microphones
• Pluggable terminal block (Phoenix type) connectors
• 12-48V Phantom Power Required
• Powers up to four mics via phantom power from mixer of from phantom power supply and provides four balanced low-impedance outputs.
• Provides programmable mic switching
• Has remote switch sensing via optical coupler
