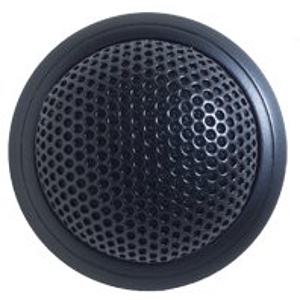

Shure MX395B/O Microflex Low Profile Omnidirectional Boundary Microphone - Black

The MX395 Microflex® low profile boundary microphone by Shure is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.

Features:

• Only 1.25 inch (3.8 cm) in diameter
• Omnidirectional polar pattern - also available with cardioid and bidirectional polar patterns
• Wide dynamic range and smooth frequency response
• Available in black, white and aluminum
• CommShield Technology
• 3-pin XLR

Type
Condenser (electret bias)


Frequency Response
50-17000 Hz


Polar Pattern
Omnidirectional


Output Impedance
EIA Rated at 150 Ω (170 Ω actual)


Output Configuration
Active balanced


Sensitivity (at 1 kHz , open circuit voltage)
Cardioid: -35 dBV/Pa (18 mV)
Omnidirectional: -28 dBV/Pa (42 mV)
Bidirectional: -37 dBV/Pa (14 mV)
1 Pascal=94 dB SPL


Maximum SPL (1 kHz at 1% THD, 1 kΩ load)
Cardioid: 121 dB
Omnidirectional: 114 dB
Bidirectional: 123 dB


Equivalent output Noise (A-weighted)
Cardioid: 28 dB SPL
Omnidirectional: 21 dB SPL
Bidirectional: 29 dB SPL


Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
Cardioid: 66 dB
Omnidirectional: 73 dB
Bidirectional: 65 dB


Dynamic Range (1 kΩ load at 1 kHz)
Cardioid: 93 dB
Omnidirectional: 93 dB
Bidirectional: 94 dB


Common Mode Rejection (10 Hz-100 kHz)
45 dB minimum


Preamplifier output Clipping level (1% THD)
-8 dBV (0.4 V)


Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.


Weight
Net: 0.136 kg (0.30 lbs.)
Packaged: 0.374 kg (0.825 lbs.)


Environmental Conditions
Operating Temperature: -18-57 °C (0-135 °F)
Storage Temperature: -29-74 °C (-20-165 °F)
Relative Humidity: 0-95%


Power Requirements
11-52 Vdc phantom, 2.0 mA
