Shure PSM 400 Wired Personal Monitor System with Onstage Mix Control, P4MHWE3

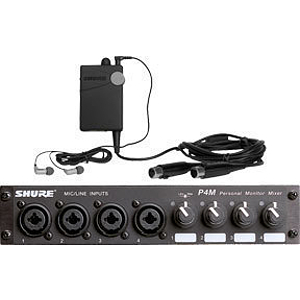

P4MHWE3, PSM 400 Wired Personal Monitor System Includes:

- P4M Mixer
- P4HW Wired Bodypack
- Gray SCL3 Sound Isolating Earphones

PSMŪ400 wireless and wired systems make professional quality personal monitoring available to more performers than ever before. Each system includes everything a working musician or band needs to receive consistent personal monitor mixes. Designed for performers who are tired of the limits of floor wedges, the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. With a wide range of available options - from complete Wireless and Wired systems to individual components - there is a PSM 400 that is right, rehearsal through performance, for almost everyone who performs live music.

P4M Personal Monitor Mixer

A highly versatile stereo mic/line mixer for installed sound system applications and personal monitoring that provides easy access and\ control of up to four signals. Two additional auxiliary inputs can be used to add channels from other sources.

• 1/2 rack
• Four level controls
• Four balance controls
• Four XLR - 1/4" mic/line inputs
• Two 1/4" TRS aux inputs
• Four split controls
• Two XLR = 1/4" TRS mix outputs
• External power supply

Specifications:

Measurement Conditions (unless otherwise specified):

full gain; 1 kHz, one channel activated; >source impedances: Mic 150 ohms, Aux Level 150 ohms; terminations: Line 600 ohms.



Frequency Response (Ref 1 kHz, controls centered)

20 Hz to 20 kHz +/- 2 dB


Input Specifications


	Input
	1-4 (front panel)	Aux In
Gain (Maximum)	43 dB	0 dB
Impedance (at 1 kHz)	5800 ohms	18 kilohm (each) 9100 ohms (1/L mono)
Input Clipping Level	+12 dBV	+12 dBV
Crosstalk	-100 dB	-90 dB
Common Mode Rejection	> 75 dB	> 70 dB

Output Specifications



	Output
	Split 1-4	Mix Out
Impedance	N/A	500 ohm (unbalanced) 1 kilohm (balanced
Output Clipping Level	N/A	+5 dBV (10 kilohm balanced load, -30 dBV input ch. 1-4)
Noise (100 Hz to 22 kHz)	-110 dBV	-100 dBV (all controls CCW) -62 dBV (all controls CW)
Distortion (THD) at 1 kHz	.0005%	<.05% (0 dBV output)
Crosstalk	-100 dB	-70 dB


LEDs: Resultant Mix Out Level
Green: -30 dBV
Yellow: -10 dBV
Red: 0 dBV

Current
120 mA max.

Power Requirements
Operating voltage 14­18 Vdc
Supplied with one of the following external power supplies:

Model PS40: 120 Vac, 60 Hz input

Model PS40E, Model PS40UK: 230 Vac, 50/60 Hz input

NOTE: Courtesy DC connector is protected from short by a self­resetting "Polyfuse". Maximum recommended load is 250mA. (2 P4Ms or 1 P4T.)

Phantom Power
The P4M does not produce phantom power, but phantom power is allowed to pass through Split Outputs 1­4 to inputs 1­4 respectively.

Audio Polarity
All outputs in polarity with all inputs.
XLR Pin 2 is "hot" with respect to Pin 3; Pin 1 is ground.
1/4" TRS tip is "hot" with respect to ring; sleeve is ground.

Temperature Range
Operating: -7 degrees to 49 degrees C (20 degrees to 120 degrees F)
Storage: -29 degrees to 74 degrees C (-20 degrees to 165 degrees F)

Overall Dimensions

          44 mm H x 218 mm W x 162 mm D (1.72 x 8.60 x 6.37 inches)

Net Weight


1.20 Kg (2 lbs, 10 oz)

P4HW Wired Bodypack

Hardwired Bodypack

Key Features

• Attached input cable
• High-impact plastic chassis

Operating Controls

• Operating mode (Stereo, Mono, MixMode)
• Volume knob
• Balance knob
• Defeatable limiter
• High-frequency boost
• -15 db Pad

Backlit LCD Indicators

• Battery life
• Input level
• Operating mode

Specifications:

Frequency Response

20 to 20,000 Hz



Total Harmonic Distortion

< .1% (measured at ­10 dBu out)



Channel Separation

35 dB (minimum)



Signal-to-noise ratio

85 dB (minimum)



Maximum Output Level

+5 dBu at 1% THD



Maximum Input Level

+7 dBu, input pad OFF

+22 dBu, input pad ON



Actual Input Impedance

> 40 kilohms



Audio Output Connector

3.5 mm stereo (left=tip, right=ring, ground=sleeve)



Power Requirements

9 V Alkaline battery



Battery Life

Up to 8 hours, volume dependant



Phantom Power Protection

Up to 60 VDC

Single WideBand Microdrivers with incredible isolation for detailed tone across the frequency range.

Specifications:

Transducer Type
Single low mass/high energy
Sensitivity (at 1 kHz)
115 dB SPL/mW
Impedance (at 1 kHz)
26 ohms
Output Connector
Gold-plated stereo, 3.5 mm (1/8-inch) phone plug
Cable Length
1.57 m (62 inches)
