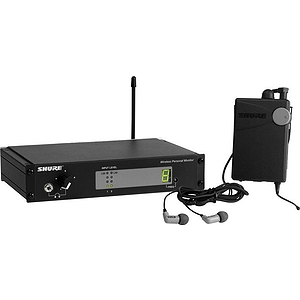

Shure PSM 400 Wireless Personal Monitor System, P4TRE3

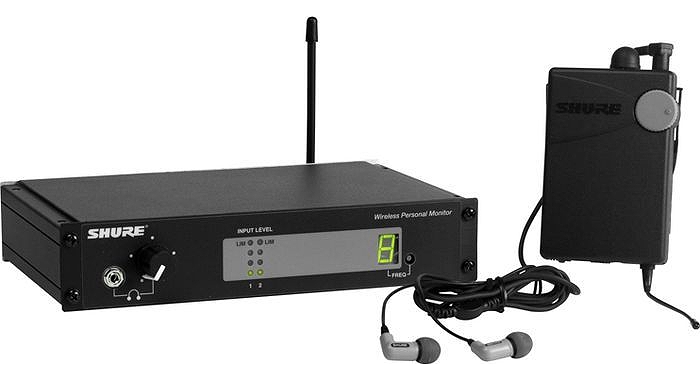

The P4TRE3 Wireless Personal Monitor System Includes:

- P4T Wireless Transmitter
- P4R Wireless Bodypack Receiver
- Gray SCL3 Sound Isolating Earphones

PSM®400 Wireless and Wired systems make professional quality personal monitoring available to more performers than ever before. Each system includes everything a working musician or band needs to receive consistent personal monitor mixes. Designed for performers who are tired of the limits of floor wedges, the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. With a wide range of available options - from complete Wireless and Wired systems to individual components - there is a PSM 400 that is right, rehearsal through performance, for almost everyone who performs live music.

P4T Wireless Transmitter

Key Features


• Built-in audio limiter
• External power supply
• Remotable/combinable antennas
• 1/2 rack space

  Operating Controls
• Earphone volume knob
• Frequency select

  LED Indicators
• 4-segment input level
• Transmission Frequency

  Inputs
• Two 1/4" TRS line level

  Outputs
• Two 1/4" TRS loop outs
• Local earphone monitor

Specifications:

RF Frequency Range

722 to 952 MHz (country dependent)

Operating Range

300 feet (environment dependent)

RF Output Power

50 mW (+17 dBm) typical conducted (country dependent)

Modulation Limiter

Internal peak limiter (>10:1 compression)

Antenna

External whip, 50 BNC connector

Power Requirements

Operating voltage 14-18 Vdc

Supplied with one of the following external power supplies:
Model PS40: 120 Vac, 60 Hz input.
Model PS40E, Model PS40UK: 230 Vac, 50/60 Hz input.
Current

250 mA maximum

Dimensions

219.2 mm X 43.6 mm X 136.5 mm (8.63 in. X 1.718 in. X 5.375 in.)

Net Weight

907.2 g (2 lbs., 0 oz.)

P4R Wireless Bodypack Receiver

Key Features


• High-impact plastic chassis
• Frequency locator

  Operating Controls
• Operating mode (Stereo, Mono, MixMode)
• Volume knob
• Balance
• Defeatable limiter
• High-frequency boost
• Frequency select

  Backlit LCD Indicators
• RF reception
• Battery life
• Operating mode
• Frequency

Specifications:

RF Frequency Range
722 to 952 MHz (country dependent)
Operating Range
300 feet (environment dependent)
Audio Frequency Response
50 Hz to 12 kHz (+/- 3 dB)
RF Sensitivity
1 mV typical
Image Rejection
55 dB typical
Spurious Rejection
60 dB typical
Squelch Threshold
4.5 mV typical
Antenna
attached whip
Power Requirements
9 V alkaline battery
Battery Life
up to 8 hours, volume dependent
Audio Output Connector
3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
Minimum Load Impedance
16 ohms
Net Weight
125 g (.28 lbs.)
Overall Dimensions
82.6 mm X 63.5 mm X 26.2 mm (3 1/4 in. X 2 1/2 in. X 1 1/32 in.)

SCL3 Sound Isolating Earphones

Single WideBand Microdrivers with incredible isolation for detailed tone across the frequency range.

Specifications

Frequency Range
25Hz - 18.5kHz
Sensitivity (at 1 kHz)
115 dB SPL/mW
Impedance (at 1 kHz)
26 ohms
Weight
28g (.9oz)
Output Connector
Gold-plated stereo, 3.5 mm (1/8-inch) phone plug
Cable Length
1.57 m (62 inches)
