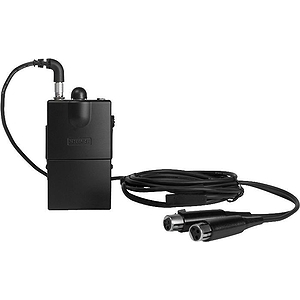

PSM 600 Series P6HW Wired Personal Monitor Bodypack with Detachable Dual Input XLR Cable

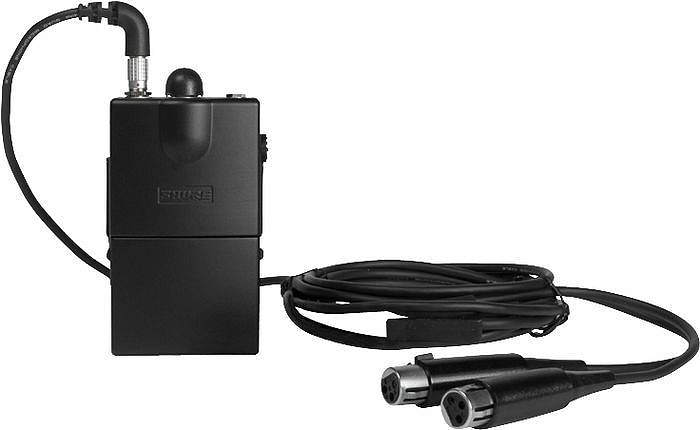

P6HW Wired Bodypack

Shure's first entry into personal monitoring, the PSM®600 continues to be recognized as the industry standard for full-featured wired and wireless in-ear systems. Rugged and reliable, they deliver superb sound for all professional broadcast, recording, touring and installed sound applications.

The PSM 600 features crystal-controlled analog operation for superior sound quality. It delivers a full frequency range and great stereo separation. Even the deepest bass notes come through loud and clear.

Key Features

• Detachable input cable
• Rugged metal chassis

• Operating mode (Stereo, Mono, MixMode)
• Volume knob
• Balance knob
• Defeatable limiter
• High-frequency boost
• -15 dB pad

• Power
• Peak input level
• Low battery

Frequency Response
26 Hz to 90 kHz (­3 dB)

Total Harmonic Distortion*
0.18% for RL = 18
0.08% for RL = 63

Channel Separation*
40 dB (minimum)

Signal-to-Noise Ratio*
85 dB (minimum)

Output Level*
+4.5 dBu (maximum level, 1% THD, RL = 18 )

Minimum Load Impedance*
16 ohms

Battery Life (with E3 earphones)
10 to 12 hours (depending on volume)

Maximum Input Level
+22 dBu, input pad ON
+7 dBu, input pad OFF

Input Impedance
44 kilohms, input pad ON
77 kilohms input pad OFF

Connectors
Output: 3.5 mm, stereo (Tip = L+, Ring = R+, Sleeve = ground)
Input: 5-pin (pin 1 indicated by red dot), phantom power protected.

Dimensions
111 mm (4.371 in.) x 64.5 mm (2.54 in.) x 31.9 mm (1.256 in.)

Net Weight
209.8 g (7.4 oz)


*Referenced to 1 kHz
