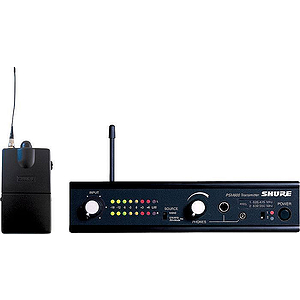

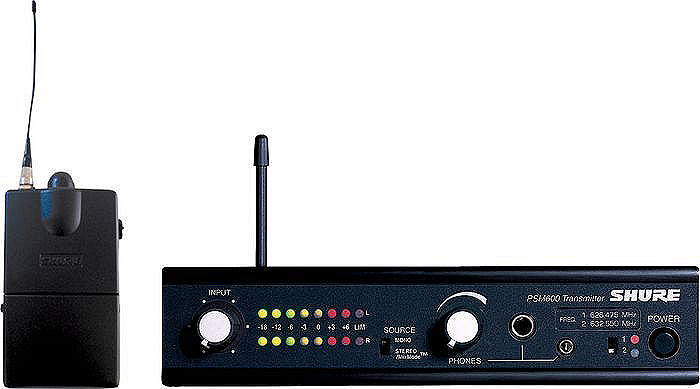

Shure PSM 600 Wireless Personal Monitor System without Earphones, P6TR

The P6TR Wireless Personal Monitor System Includes:

- P6T Wireless Transmitter
- P6R Wireless Bodypack Receiver
(Sound Isolating Earphones not included)

Shure's first entry into personal monitoring, the PSM®600 continues to be recognized as the industry standard for full-featured wired and wireless In-Ear systems. Rugged and reliable, they deliver superb sound for all professional broadcast, recording, touring and installed sound applications.

The PSM 600 features crystal-controlled analog operation for superior sound quality. It delivers a full frequency range and great stereo separation. Even the deepest bass notes come through loud and clear.

P6T Wireless Transmitter

Built-in audio limiter, 1/2 rack space, internal power supply, remotable/combinable antennas.

Key Features

• Built-in audio limiter
• 1/2 rack space
• Internal power supply
• Remotable/combinable antennas

• Input knob
• Operating mode (Stereo, Mono, MixMode)
• Earphone volume control
• Frequency select switch

• 8-segment input level
• Frequency

• Two line level XLR 1/4" combos

• Two 1/4" TRS loop outs
• Local earphone monitor

RF Output Power
100 mW (+20 dBm) typical conducted (country dependent)



Modulation Limiter
Internal peak limiter (>10:1 compression)



Antenna
External whip, 50 ohm BNC connector



Power Requirements
P6T: 100 to 120 Vac, 50/60 Hz
EP6T: 220 to 240 Vac, 50/60 Hz
(NOTE: This product is not disconnected from the mains power supply when the power switch is in the OFF position.)



Current
115 mAac maximum at 120 Vac
55 mAac maximum at 230 Vac



Fuse
P6T: 120 Vac, 160 mA/250 V time delay
EP6T: 230 Vac, 80 mA/250 V time delay



Dimensions
44.5 mm X 197.4 mm X 238.1 mm (1 3/4 in. X 7 3/4 in. X 9 3/8 in.)



Net Weight
1.62 kg (3 lbs., 9 oz.)

• Rugged metal chassis

• Operating mode (Stereo, Mono, MixMode
• Volume knob
• Balance knob
• Defeatable limiter
• High frequency boost
• Frequency select

• Power
• RF reception
• Low battery

RF Sensitivity
1.2 µV typical


Image Rejection

          70 dB typical

Spurious Rejection

60 dB typical



Squelch Threshold

4 µV typical



Antenna Input Impedance

50 ohms typical



Antenna

External, threaded connector



Power Requirements

9 V battery



Battery Life

4­6 hours, volume dependent



Audio Output Connector

3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)



Minimum Load Impedance

16 ohms



Net Weight

0.52 lbs.



Overall Dimensions

27.18 mm X 64.52 mm X 85.09 mm (1.070 in. X 2.540 in. X 3.350 in.)
