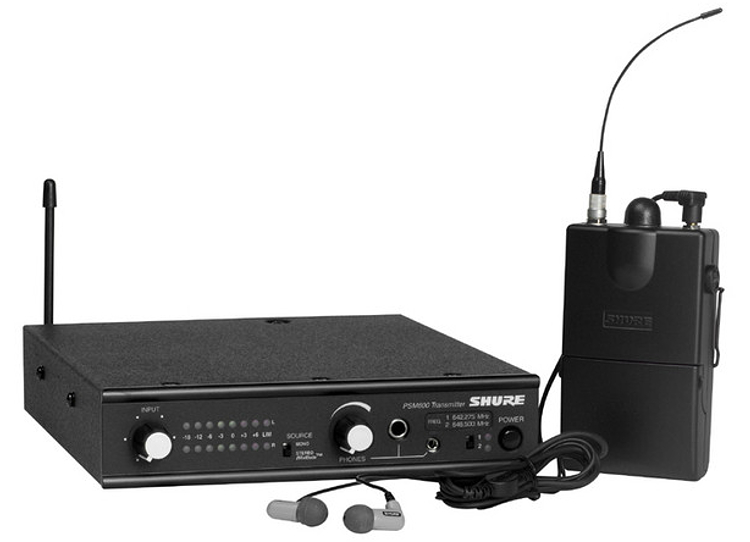

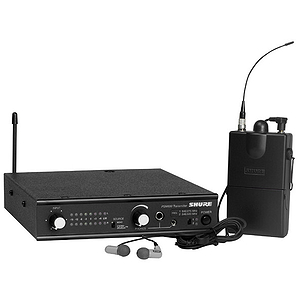

PSM 600 Wireless Personal Monitor System with SCL3 Earphones, P6TRE3

The P6TR Wireless Personal Monitor System Includes:

- P6T Wireless Transmitter
- P6R Wireless Bodypack Receiver
- Gray SCL3 Sound Isolating Earphones

Shure's first entry into personal monitoring, the PSM®600 continues to be recognized as the industry standard for full-featured wired and wireless In-Ear systems. Rugged and reliable, they deliver superb sound for all professional broadcast, recording, touring and installed sound applications.

The PSM 600 features crystal-controlled analog operation for superior sound quality. It delivers a full frequency range and great stereo separation. Even the deepest bass notes come through loud and clear.

P6T Wireless Transmitter

Built-in audio limiter, 1/2 rack space, internal power supply, remotable/combinable antennas.

Key Features

• Built-in audio limiter
• 1/2 rack space
• Internal power supply
• Remotable/combinable antennas

Operating Controls

• Input knob
• Operating mode (Stereo, Mono, MixMode)
• Earphone volume control
• Frequency select switch

LED Indicators

• 8-segment input level
• Frequency

Inputs

• Two line level XLR 1/4" combos

Outputs

• Two 1/4" TRS loop outs
• Local earphone monitor

Specifications:

RF Output Power
100 mW (+20 dBm) typical conducted (country dependent)
Modulation Limiter
Internal peak limiter (>10:1 compression)
Antenna
External whip, 50 ohm BNC connector
Power Requirements
P6T: 100 to 120 Vac, 50/60 Hz
EP6T: 220 to 240 Vac, 50/60 Hz
(NOTE: This product is not disconnected from the mains power supply when the power switch is in the OFF position.)
Current
115 mAac maximum at 120 Vac
55 mAac maximum at 230 Vac
Fuse
P6T: 120 Vac, 160 mA/250 V time delay
EP6T: 230 Vac, 80 mA/250 V time delay
Dimensions
44.5 mm X 197.4 mm X 238.1 mm (1 3/4 in. X 7 3/4 in. X 9 3/8 in.)
Net Weight
1.62 kg (3 lbs., 9 oz.)

P6R Wireless Bodypack Receiver

Key Features

• Rugged metal chassis

Operating Controls

• Operating mode (Stereo, Mono, MixMode
• Volume knob
• Balance knob
• Defeatable limiter
• High frequency boost
• Frequency select

LED Indicators

• Power
• RF reception
• Low battery

Specifications:

RF Sensitivity
1.2 µV typical
Image Rejection
70 dB typical
Spurious Rejection
60 dB typical
Squelch Threshold
4 µV typical
Antenna Input Impedance
50 ohms typical
Antenna
External, threaded connector
Power Requirements
9 V battery
Battery Life
4­6 hours, volume dependent
Audio Output Connector
3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
Minimum Load Impedance
16 ohms
Net Weight
0.52 lbs.
Overall Dimensions
27.18 mm X 64.52 mm X 85.09 mm (1.070 in. X 2.540 in. X 3.350 in.)

SCL3 Sound Isolating Earphones

Single WideBand Microdrivers with incredible isolation for detailed tone across the frequency range.

Specifications

Frequency Range
25Hz – 18.5kHz
Sensitivity (at 1 kHz)
115 dB SPL/mW
Impedance (at 1 kHz)
26 ohms
Weight
28g (.9oz)
Output Connector
Gold-plated stereo, 3.5mm (1/8-inch) phone plug
Cable Length
1.57 m (62 inches)
