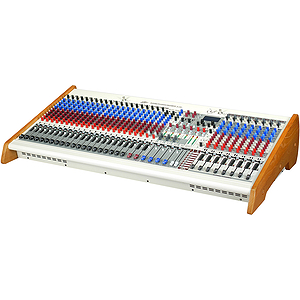

Peavey Sanctuary Series S-32 32-Channel Mixer
Rollover image for closeup

Peavey Sanctuary Series S-32 32-Channel Mixer

Item #: MP.S-32

Our Price:
$3699.99 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by Peavey

32-Channel Mixer. Made by Peavey. (MP.S-32)

Free Shipping on this item, and most items in same order also ship free

Temporarily Out of Stock -- Notify Me when Back in Stock

Found in:  Unpowered Live Sound Mixers

Goes With -- Check a box to also include that item in cart

The Sanctuary Series S-32 is a 32-channel mixer designed with several unique, user-friendly features to simplify operation. As on the previously released Sanctuary S-14 and S-32 mixers, Peavey-exclusive technologies such as Automix™, Auto Delay™ and Mid-Morph™ EQ allow any church leader or layperson to use this mixer with confidence.

On the S-32, channels 1-24 can be sent to three subgroups-Solo, Choir and Music-while channels 25-32 have a fourth subgroup option that engages the exclusive Automix function. In addition, there are eight programmable Mute groups that can be utilized to silence groups of instruments, vocalists or other audio sources. All 32 channels include high, low, mid-frequency and Mid-Morph equalization, and all have direct outputs. The stereo line channels (21/22 and 23/24) simplify patching with three stereo inputs each and dual stereo gain trim controls, and they can accommodate split-accompaniment audio tracks or full stereo playback. The Monitor Blend control allows any mix of the left and right channels to be sent to the monitors.

The S-32 features a sophisticated digital effects processing section with a complete library of contemporary effects. The powerful DSP functions also serve many of the S-32's outputs; for example, you can program crossovers, equalization (graphic or parametric), compression/limiting and delays. The patent-pending Auto Delay toolset simplifies setting speaker delays for balcony, overflow seating or nursery areas. A built-in USB output can stream audio directly to a computer for digital recording and playback.

Automix is an automatic mixing function that will adjust microphones input levels automatically, turning down unused or low priority inputs to give dominance to the main microphone; the Mid-Morph equalizer is actually two EQ controls in one, pulling out low-mid frequencies that muddy the sound when the knob is cut and shifting to an upper-range frequency boost that brightens the vocal range.


  • 28 XLR mic and 1/4" line inputs
  • Eight Automix channels with compressors
  • Two stereo line channels with three input selections, track selection and Monitor Blend control for split-accompaniment tracks (Split-Track Mix)
  • Variable low-cut filter on the microphone (mono) inputs
  • Four-band EQ with low and high shelf, sweepable mid-frequency and Mid-Morph
  • Pre-fader, post-EQ direct outputs on the mono channels.
  • Three music subgroups with compressor, auto-off (downward expander) and vocal enhancer
  • One Automix subgroup with vocal enhancer
  • Four monitor sends
  • Two post-fader auxiliary sends
  • Eight programmable mute groups
  • Subgroup mutes automatically configure as mute groups of assigned inputs
  • Digital 1/3 octave graphic or parametric EQ and delay on the main outputs
  • Exclusive Auto Delay for setting delay speakers
  • USB connection for streaming audio for digital recording and playback
  • Effects processor allows up to three effects to be combined and edited
  • Exclusive stereo ambience mic inputs provide room ambience to the record, broadcast and processed mono outputs
  • Auto-level function on record and broadcast outputs optimizes dynamic range for easier listening
  • 100 mm channel and master faders
  • Two mixer lamp connectors (BNC 12 Volt)
  • 43" wide x 23.5" deep x 9.25 high/ 109.2 cm x 59.7 cm x 23.5 cm
