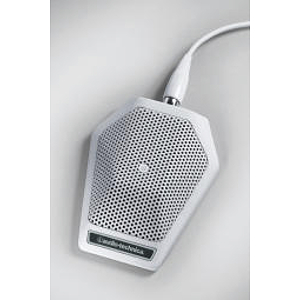

Audio-Technica U851RW Cardioid Condenser Boundary Microphone - White

The white-finished version of the U851R, the phantom-powered U851RW features a PivotPoint® rotating output connector, UniSteep® filter and UniGuard® RFI-shielding technology.

Offering outstanding speech intelligibility and transparent sound quality for surface-mount applications, the U851RW accepts interchangeable condenser elements-available for boundary microphones in cardioid, hypercardioid and omnidirectional polar patterns. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851RW is equipped with self-contained electronics, eliminating the need for an external power module.

Features:

• Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
• PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
• Superior off-axis rejection for maximum gain before feedback
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Self-contained electronics eliminate need for external power module
• Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
• Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
• Low-profile design with low-reflectance finish for minimum visibility
• Available in two colors: black (U851R) and white (U851RW)

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Half-cardioid (cardioid in hemisphere above mounting surface)
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
• OPEN CIRCUIT SENSITIVITY: -34 dB (19.9 mV) re 1V at 1 Pa
• IMPEDANCE: 200 ohms
• MAXIMUM INPUT SOUND LEVEL: 134 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 108 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 68 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical
• SWITCH: Flat, roll-off
• OUTPUT CONNECTOR: TB3M-type
• CABLE: 25.0' (7.6 m) long, 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F and XLRM-type connectors
• OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100°); UE-O omnidirectional (360°)
• INCLUDED ACCESSORY: Soft protective pouch
