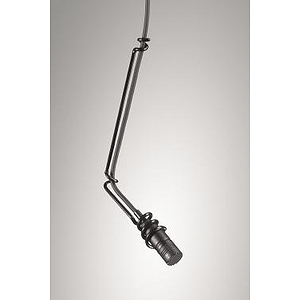

| Cardioid Condenser Hanging Microphone. Made by Audio-Technica. (MP.U853PM)
Designed for permanent installation, the U853PM cardioid condenser hanging microphone comes equipped with a wall/ceiling plate power module. The phantom-powered microphone features UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. It accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine™ line cardioid polar patterns. Its 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise. Features: Designed for suspension over choirs, instrumental groups and theater stages- Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
- Low-profile design with low-reflectance finish for minimum visibility
- Available in two colors: black (U853PM) and white (U853PMW)
Specs: - ELEMENT: Fixed-charge back plate, permanently polarized condenser
- POLAR PATTERN: Cardioid
- FREQUENCY RESPONSE: 30-20,000 Hz
- LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
- OPEN CIRCUIT SENSITIVITY: –39 dB (11.2 mV) re 1V at 1 Pa
- IMPEDANCE: 200 ohms
- MAXIMUM INPUT SOUND LEVEL: 128 dB SPL, 1 kHz at 1% T.H.D.
- DYNAMIC RANGE (typical): 102 dB, 1 kHz at Max SPL
- SIGNAL-TO-NOISE RATIO: 68 dB, 1 kHz at 1 Pa
- PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical
- SWITCHES: Flat, roll-off; 0 dB/+10 dB gain setting
- OUTPUT CONNECTOR (POWER MODULE): Screw terminals
- CABLE: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
- OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine™ (90°)
- INCLUDED ACCESSORIES: AT8153 two-stage foam windscreen; AT8451 steel hanger; AT8534 wall/ceiling plate power module; AT8438 5/8"-27 stand adapter
- AUDIO-TECHNICA CASE STYLE: M12
