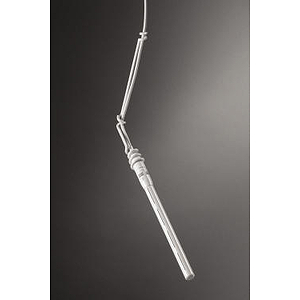

Audio-Technica UniLine U853PMWU Cardioid Condenser Hanging Microphone - White - For Permanent Installation

The white-finished version of U853PMU, the U853PMWU UniLine condenser hanging microphone features Audio-Technica's UniLine™ line-cardioid element and comes equipped with a wall/ceiling plate power module for permanent installation in a standard, single-gang electrical box.

The phantom-powered microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. It accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine™ line cardioid polar patterns. Its 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise.

Features:

• Designed for suspension over choirs, instrumental groups and theater stages
• Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
• UniLine™ polar pattern provides narrow 90° acceptance angle
• Superior off-axis rejection for maximum gain before feedback
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
• Low-profile design with low-reflectance finish for minimum visibility
• Available in two colors: black (U853PMU) and white (U853PMWU)

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Line Cardioid
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
• OPEN CIRCUIT SENSITIVITY: -35 dB (17.7 mV) re 1V at 1 Pa
• IMPEDANCE: 200 ohms
• MAXIMUM INPUT SOUND LEVEL: 124 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 102 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical
• SWITCHES: Flat, roll-off; 0 dB/+10 dB gain setting
• OUTPUT CONNECTOR (POWER MODULE): Screw terminals
• CABLE: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
• OPTIONAL INTERCHANGEABLE ELEMENTS: UE-C cardioid (120°); UE-H hypercardioid (100°); UE-O omnidirectional (360°)
• ACCESSORIES FURNISHED: AT8154(WH) two-stage foam windscreen; AT8451(WH) steel hanger; AT8534 wall/ceiling plate power module; AT8438 5/8"-27 stand adapter
• AUDIO-TECHNICA CASE STYLE: M32
