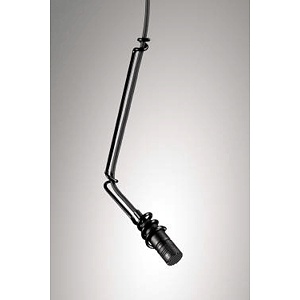

Audio-Technica U853R Cardioid Condenser Hanging Microphone

Perfect for speech, theater, orchestra and choir sound reinforcement and recording, the U853R cardioid condenser hanging microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference.

With a consistent cardioid polar pattern, the mic offers natural sound from any angle, and superior gain before feedback. It is phantom powered and features an integral 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine™ line cardioid polar patterns.

Features:

• Designed for suspension over choirs, instrumental groups and theater stages
• Superior off-axis rejection for maximum gain before feedback
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
• Low-profile design with low-reflectance finish for minimum visibility

• ELEMENT Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN Cardioid
• FREQUENCY RESPONSE 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
• OPEN CIRCUIT SENSITIVITY -39 dB (11.2 mV) re 1V at 1 Pa
• IMPEDANCE 250 ohms
• MAXIMUM INPUT SOUND LEVEL 139 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical) 115 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO 70 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
• SWITCH Flat, roll-off
• WEIGHT (MICROPHONE) 0.5 oz (14 g)
• WEIGHT (POWER MODULE) 2.9 oz (81 g)
• DIMENSIONS (MICROPHONE) 1.34" (34.0 mm) long, 0.48" (12.2 mm) diameter
• DIMENSIONS (POWER MODULE) 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
• OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
• CABLE 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector
• ACCESSORIES FURNISHED AT8153 two-stage foam windscreen; AT8451 steel hanger; AT8538 power module; AT8438 5/8"-27 stand adapter
