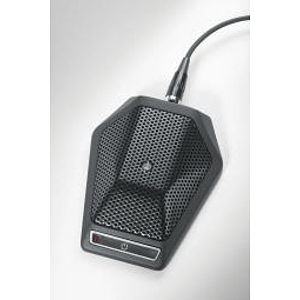

Audio-Technica U891R Cardioid Condenser Boundary Microphone

Designed to deliver easy, flexible control in conference and boardroom installations, the versatile U891R cardioid condenser boundary microphone features a touch-sensitive on-off switch that can be set to three modes: press-on/press-off, press to talk, and press to mute.

The phantom-powered microphone is equipped with a unique PivotPoint® rotating output connector and an LED status indicator. UniGuard® innovations offer unsurpassed immunity from radio frequency interference; interchangeable elements are available in cardioid, hypercardioid and omnidirectional polar patterns; an 80 Hz low-cut UniSteep® filter reduces pickup of low-frequency ambient noise. The microphone's heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone. The unit's self-contained electronics eliminate the need for an external power module.

Features:

• Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
• Ultra-quiet electronic switch can be set to any of three operating modes: "touch-on/ touch-off," "touch-to-talk" and "touch-to-mute"
• PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
• Superior off-axis rejection for maximum gain before feedback
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
• Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
• Low-profile design with low-reflectance finish for minimum visibility
• Available in two colors: black (U891R) and white (U891RW)

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Half-cardioid (cardioid in hemisphere above mounting surface)
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
• OPEN CIRCUIT SENSITIVITY: -34 dB (19.9 mV) re 1V at 1 Pa
• IMPEDANCE: 200 ohms
• MAXIMUM INPUT SOUND LEVEL: 130 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 104 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 68 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typicalOUTPUT CONNECTOR: TB3M-type
• CABLE: 25.0' (7.6 m) long, 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F and XLRM-type connectors
• OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100°); UE-O omnidirectional (360°)
• INCLUDED ACCESSORY: Soft protective pouch
