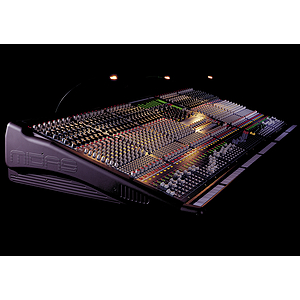

Midas Verona 480 48-Channel 8 Buss Mixing Console
Rollover image for closeup

Midas Verona 480 48-Channel 8 Buss Mixing Console

Item #: MP.V480-8-IP

Estimate the Delivery Date

Note: This item may NOT arrive before Christmas via standard Ground or 3-Day shipping. To insure Christmas delivery, choose 2-Day shipping before Fri 12/19 3PM EST, or Next Day shipping before Mon 12/22 3PM EST.

List Price: $25366.67
Our Price:
$22830.00 with Free Shipping

No Rating Unrated ( Be the first to review this item )

by Midas

48 Mic Inputs (48 Mono Mic ch. + 8 Multi Function ch.). 48-Channel Mixer. Made by Midas. (MP.V480-8-IP)

Free Shipping on this item, and most items in same order also ship free

In Stock
Usually ships within 1-2 business days

Found in:  Powered Live Sound MixersMusic Mixers, Audio Mixers for the StudioPowered Mixers for the Theater



NOTE: PLEASE CALL FOR SHIPPING QUOTE AND ARRANGEMENTS

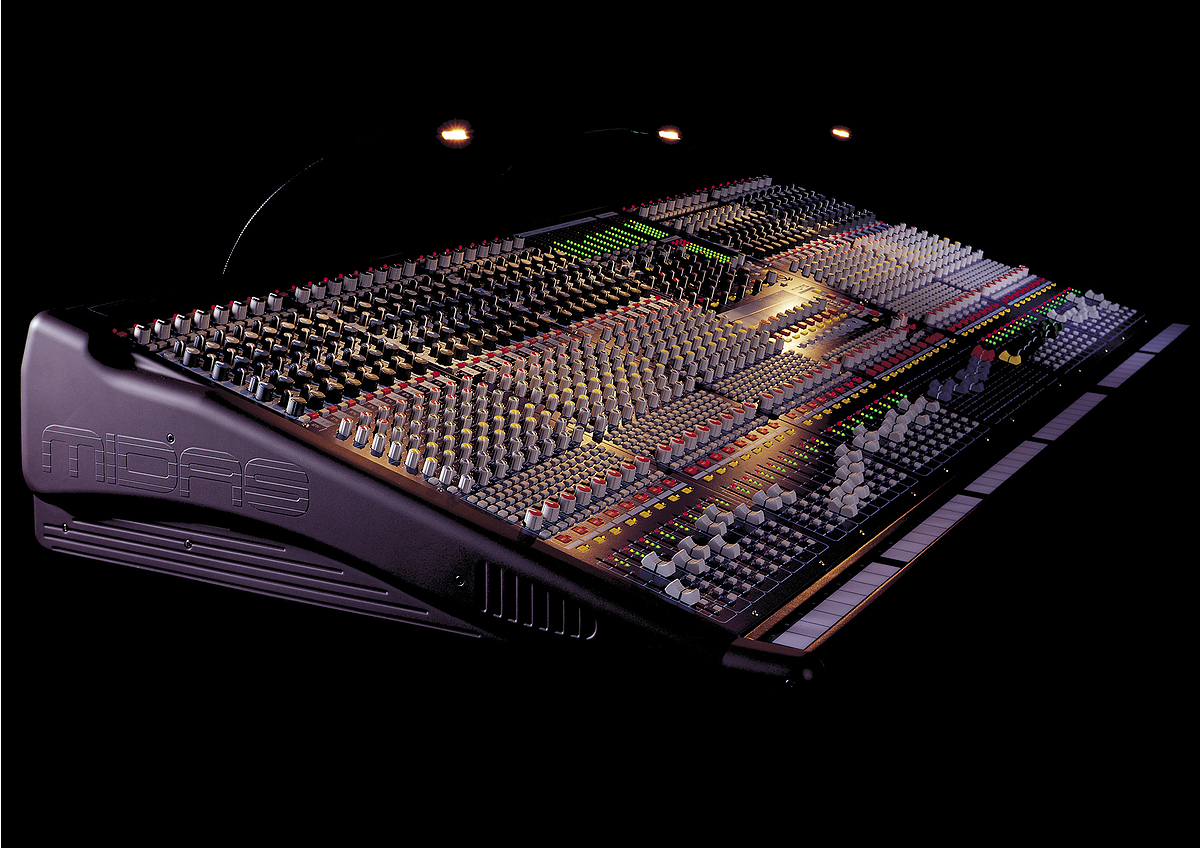

Midas Verona 480

Verona is, quite simply, the desk the industry has been asking Midas for.

It takes the concept of the ultra-compact Venice, Midasi1/2 best selling console of all time, and elevates it to the next level. Verona delivers more inputs, more features, along with legendary Midas quality in a package that revolutionizes the 8 buss market. Visually, the console looks stunning; despite iti1/2s physically modest proportions, it feels like a full-sized Midas to work on; and of course, most importantly of all, it sounds as good as it looks.

So what exactly is Verona?



Firstly, iti1/2s a truly professional desk aimed squarely at the professional market. Mechanically and electronically Verona is much more than just another 8-bus console. If you are primarily motivated by audio quality, rigid mechanical construction, long-term reliability and high residual values, then it is THE 8-buss console. The Verona series consists of 5 models ranging from 24 up to a massive 56 inputs, and incorporates all the features and components that make it look, sound and feel like a true Midas. It has been designed from the ground up by the same team responsible for the XL4 and the Heritage Series consoles, including the industry-standard Heritage 3000.

Anyone who has ever bought a Venice and loved it is going to be captivated by the Verona i1/2 you get more inputs, more features and that all-important Midas quality. Available as an install or touring package the Verona will handle anything from houses of worship to broadcast / recording, theater to corporate applications, and of course concert sound.

Features & Specifications:

Compact Console - with Big Console Attitude: Verona delivers more inputs, more features, along with legendary Midas quality in a package that revolutionizes the 8 buss market. Visually, the console looks stunning; despite iti1/2s physically modest proportions, it feels like a full-sized Midas to work on; and of course, most importantly of all, it sounds as good as it looks.

Models: The Verona is available in 5 models: Verona 240, 320, 400, 480 and 560

Superior Midas Sound: Verona uses a brand new premium performance mic amp design, with very high CMR performance providing simple, noise free interconnections. High performance audio summing busses are used throughout and all main outputs are fully balanced with high current capability for noise free interconnections.

Equalizer: Highly accurate and musical swept 4-band EQ on every mono channel. The stereo channel is the same variety with swept mids. There is a switched high pass filter on every channel plus swept frequency on mono inputs.

Multi Function Modules: Verona includes 8 multi function inputs as standard. These inputs can be mono mic, stereo line or both. The stereo line jacks are for use with either balanced or unbalanced line level signals and are protected from 48V phantom. The mono mic amp input incorporates a phase switch and a front panel switched insert.

8 Aux Outputs: 2 Aux busses with individual Pre/Post Fader switches and 6 Aux busses with global master Pre/Post fader assign.

8 Audio Sub Groups: Assigned from individual routing buttons (pre/post pan) from the input channel.

Spacial Image System (SISi1/2): Spatial Image System utilizes a central cluster with a left-right system to form three discrete channels. Available from channels and groups.

4 mute groups: Easy to program, easy to re-call mutes created from inputs. The soft mute circuit has silent operation and LED indication.

Channel Inserts: Front panel switchable insert points on each mic input.

12 x 4 Matrix: Fed from the Groups (or Auxes dependent on c/o switch), LR & C and external input on rotary controls. The external input can be individually routed directly to LR & C if required.

Unique Module Construction: Semi modular construction in 8 channel blocks. Modules blocks feature a structural sub chassis carrying 2 PCBs and a separate (non structural) dress facia.

Faders: 100mm monorail self cleaning faders

PSUi1/2s: The current sharing, voltage sensing, auto-switching PSUi1/2s are internally mounted. The i1/2no humi1/2 design saves the need for external racking and cabling. Verona 240 and 320 come with one internal PSU whilst Verona 400, 480 and 560 come with two internal PSUi1/2s. Each frame includes an external connection port for an optional external PSU.

Verona Practicality: The Verona can be shipped as a touring package which includes flightcase, Littlites and dustcover. For those of you who will be using the Verona in a fixed installation it can be shipped as an install package, without the expense of a flight case.

Verona Versatility: Due to Veronai1/2s intelligent design the desk can be loaded with as many multifunction modules as you require. Each module has eight multi function inputs.

Verona Capability: Every Verona console has backup PSU capability. Verona 400, 480 and 560 models have redundancy as standard. Internal PSUi1/2s are auto-voltage sensing, current-sharing and auto-changeover.
All Verona consoles have a connector for an optional external PSU.

Verona Spatial Image Systemi1/2: The benefits of S.I.S.i1/2 can only be realized with a console that is built for the task.Conventional consoles can be used for three channel mixing, but the methods for doing so are complicated and unorthodox, forcing the engineer to work in unaccustomed ways, limiting creative flexibility, making use by visiting operators impractical.
When using Midas S.I.S.i1/2 capable mixing consoles the pan controls may be switched for either conventional or S.I.S.i1/2 operation on each input channel. In S.I.S.i1/2 mode the center position of the control routes the input to a separate channel output, in this case it pans from left to center or right to center. Back up vocalists can be panned slightly into the center cluster to improve intelligibility while keeping the featured vocal i1/2front and centeri1/2. Musical instruments can be placed in a conventional mix then easily switched to the center for solos. In theatrical productions S.I.S.i1/2 gives the ability to pan an actori1/2s voice across three channels following their on stage movements. In stereo only productions the center output can be used to provide a mono to sub base feed activating a single i1/2L + R to Centeri1/2 switch.

Dimensions: 71.30" x 30.76" x 9.15"/1811 mm x 782 mm x 232.34 mm

Weight: 165.34 lbs/75kg

Warranty: Midas has confidence in their products resulting in an industry beating 3-year warranty.

Technical Specifications:



Input Impedance
Mic 1K5 Balanced
Line 10K Balanced

Input Gain (all faders at 0dB)
Mic continuously variable from +15dB to + 60dB
Mic + Pad continuously variable from 0dB to + 45dB
Mono Channel
Line Inputs continuously variable from 0dB to + 45dB (-15dB to +30dB with pad)


Stereo Channel
Line Inputs continuously variable from + 20dB to off
Direct Inputs continuously variable from + 20dB to off


Maximum Input Level
Mic + 6dBu
Mic + Pad + 21dBu
Mono Channel Line + 36dBu
Stereo Channel Line + 26dBu

CMR at 100Hz Mic (gain + 40dB) Typ 95dB
Mic + Pad (gain 0dB) Typ 80dB
Line (gain 0dB) Typ 80dB

CMR at 1kHz
Mic (gain + 40dB) Typ 95dB
Mic + Pad (gain 0dB) Typ 80dB
Line Typ 80dB

Frequency Response (20 to 20KHz)
Mic to Mix (gain + 40dB) + 0dB to - 1dB

Noise (20 to 20KHz)
Mic EIN ref. 150 Ohms (gain + 60dB) - 129dB

System Noise (20 to 20kHz)
Summing Noise (48 channels routed with faders down) - 80dB
Line to Mix Noise (48 channels routed at 0dB, pan centre) - 75dB

Distortion at 1kHz
Mic to Mix (+ 40dB gain, 0dBu output) < 0.03%

Crosstalk at 1kHz
Channel to Channel < - 90dB
Mix to Mix < - 90dB
Channel to Mix < - 90dB
Maximum Fader attenuation > 100dB
Maximum Mute attenuation > 100dB

Output Impedance
All Line Outputs 50 Ohms Balanced Source to drive > 600 Ohms
Headphones To drive > 100 Ohms

Maximum Output Level
All Line Outputs + 21dBu
Headphones + 21dBu

Nominal Signal Level
Mic - 60dBu to 0dBu
Line 0dBu
Headphones + 10dBu

Equalizer
Hi pass slope 12dB / Oct
Hi pass frequency continuously variable- 3dB point from 20Hz to 400Hz
Treble Gain continuously variable + 15 dB to - 15dB center detent = 0dB
Treble Freq continuously variable - 3dB point from 2k to 20k
Hi Mid Gain continuously variable + 15 dB to - 15dB center detent = 0dB
Hi Mid Freq continuously variable centre from 400Hz to 8k
Hi Mid Bandwidth 1 Oct.
Lo Mid Gain continuously variable + 15 dB to - 15 dB center detent = 0dB
Lo Mid Freq continuously variable center from 100Hz to 2k
Lo Mid Bandwidth 1 Oct
Bass Gain continuously variable + 15dB to - 15dB center detent = 0dB
Bass Freq continuously variable - 3dB point from 20Hz to 200Hz

* Due to a policy of continual improvement Midas reserves the right to alter the specification and performance at any time without prior notification.
