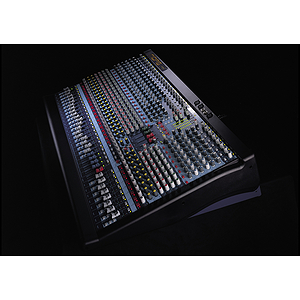

Midas Venice 160 16-Channel Mixing Console

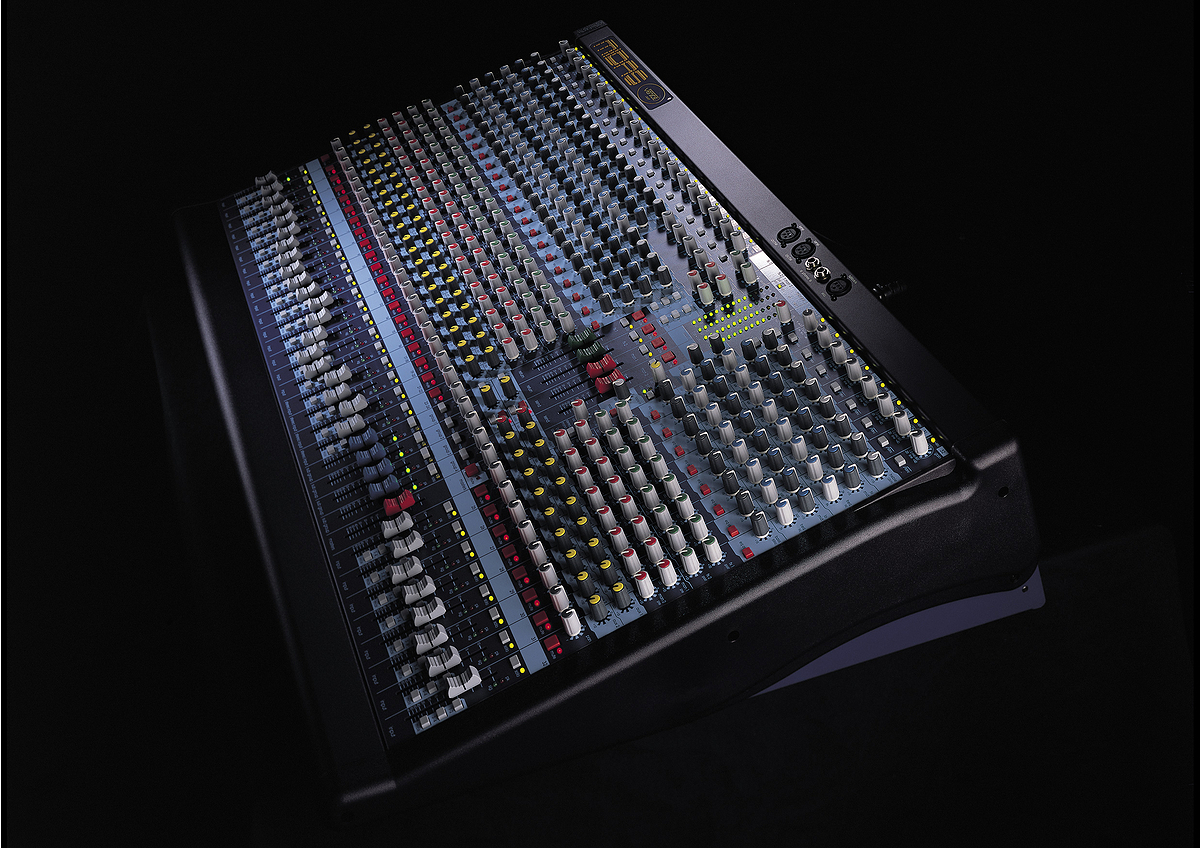

Midas Venice 160

Venice is Midas' first truly compact console built in direct response to customer demand. It does exactly what was asked in that it provides a high quality alternative in a huge number of applications where previously Midas was not an option. These range from smaller conference or live band applications, to effects returns or additional inputs in a large multi-console application, or indeed as part of a small complete mobile system. It also provides the perfect feature set for live acts who need to mix their own FOH and monitor sound from on-stage, and is compact and light enough to fit on even the most cramped performance area.

As usual, Midas has paid attention to the details that set their consoles apart taking care to provide high quality mic preamps and a stable, responsive EQ section, just as they do on their larger consoles. The simple but intuitive outputs make the overall configuration of the console extremely quick and easy to use.

Features and Specifications

Inputs (total): 30

• Mono-Inputs (Mic/Line) with Inserts: 8
• Stereo-Line/Mono-Mic-Input Channels: 4/4
• Stereo-Effect-Returns (Line): 4
• Stereo-Tape-Return (Line): 1 left/right

Busses: 15

• Subgroups: 4
• Aux Pre-Fader (Monitor): 2
• Aux Post-Fader (Effects): 2
• Aux switchable Pre/Post-Fader: 2
• Master L/R: 2
• Mono-PFL: 1
• Stereo-AFL: 2

Outputs:

• Subgroups (with Inserts): 4 impedance balanced 1/4 inch jacks
• Aux Pre-Fader (Monitor): 2 XLR (balanced)
• Aux Post-Fader (Effects): 2 impedance balanced 1/4 inch jacks
• Aux switchable Pre/Post-Fader: 2 XLR (balanced)
• Master (with Inserts): 2 XLR (balanced)
• Master B Out (switchable Mono/Stereo, pre-post Fader): 2 XLR (balanced)
• Tape Send (Recording): 1 Stereo (Phono)
• Direct Outputs (1/4 inch Jack): 8
• Stereo-Headphones: 2 Stereo-1/4 inch jack
• Stereo-Speakers: 2 impedance balanced 1/4 inch jacks

Width: 490 mm / 19.3"

Depth: 568 mm / 22.4"

Height: 194 mm / 7.6"

Weight (kg/lbs): 16.4 kg / 36.2 lbs

Power Consumption: 75W

Mains Voltage: 110V/120V/220V/230V/240V, 50-60Hz

Additional Features:

• 2 x 12V/5W (4-Pin XLR) Connector for desk lamps
• 19“-rack-mounting- kit
• Rotatable connector panel
• Dust Cover (included)

Additional Technical Specs
