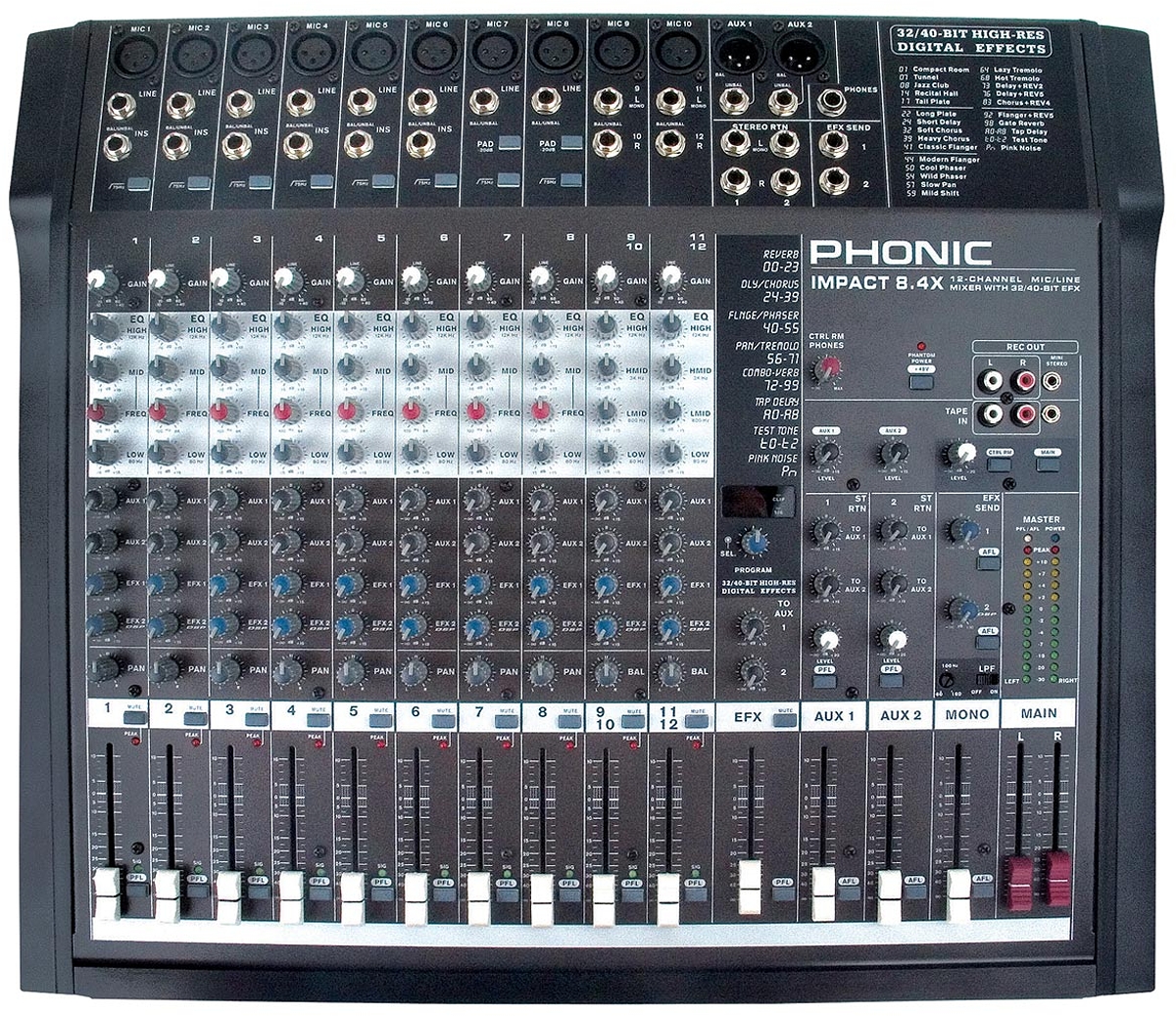

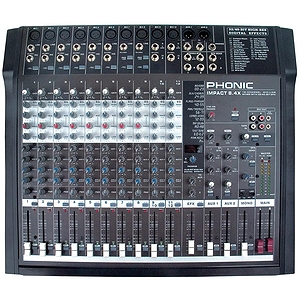

Phonic Impact 8.4X 12-Channel Mic/Line Mixer with DFX

The Impact 8.4X is an easy-to-use mixing console that provides all the features you need for the project studio and live sound reinforcement. It has 10 ultra-quiet Mic preamps with high headroom and phantom power, and two stereo line channels. All mono channels feature inserts and low-cut switches.

A 3-band EQ with swept-mid on mono channels and 4-band EQ on stereo channels gives you greater control over your mix. Four Aux sends and two stereo Aux returns can be used to connect a variety of outboard Signal Processors or to create special mixes to send to the performers' monitor Speakers. An onboard 32-bit stereo digital effects processor features 16 programs plus one main parameter control, tap control and foot switch jacks. Output is through XLR or 1/4" phone jacks and is selectable as stereo or mono output, with mono doubling as a subwoofer output.

The added feature of mini stereo input/output makes this Mixer perfect for anyone connecting MP3, MD or computer audio or recording devices. The Impact 8.4X is ideal for houses of worship, small to medium-sized halls and project studios.

Features:

• Audiophile quality & ultra low noise
• 10 Mic preamps
• Mono channels have 3-band EQ with swept mid-range, 75Hz (18 dB/octave) low-cut filter, inserts and phantom power
• Two stereo channels with 4-band EQ
• 4 AUX sends, AUX 1 & 2 with XLR and 1/4'' phone output jacks
• 32-bit digital stereo multi-effect processor with 16 programs plus one main parameter control, tap control and foot switch jacks
• 2 stereo AUX returns with effect to monitor
• PAD on 4 mono channels to handle difficult signals
• Polarity reverse switch on two channels
• Main Stereo and Mono output with XLR and 1/4'' phone jacks
• Mono output with variable low pass filter for subwoofer
• Tape input can be routed to AUX 1 and AUX 2
• Record output with trim control for level matching
• Mini stereo I/O for MD, MP3 player/recorder
• Built-in switching power supply with universal connector, 100-240VAC, 50/60Hz
• BNC jack for 12V gooseneck lamp
• Optional Rack-mounting kit for IMPACT 8X only, model name ER8IM
