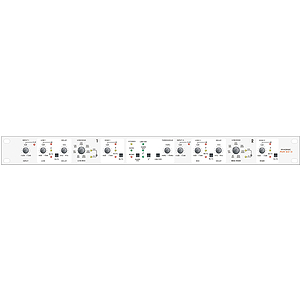

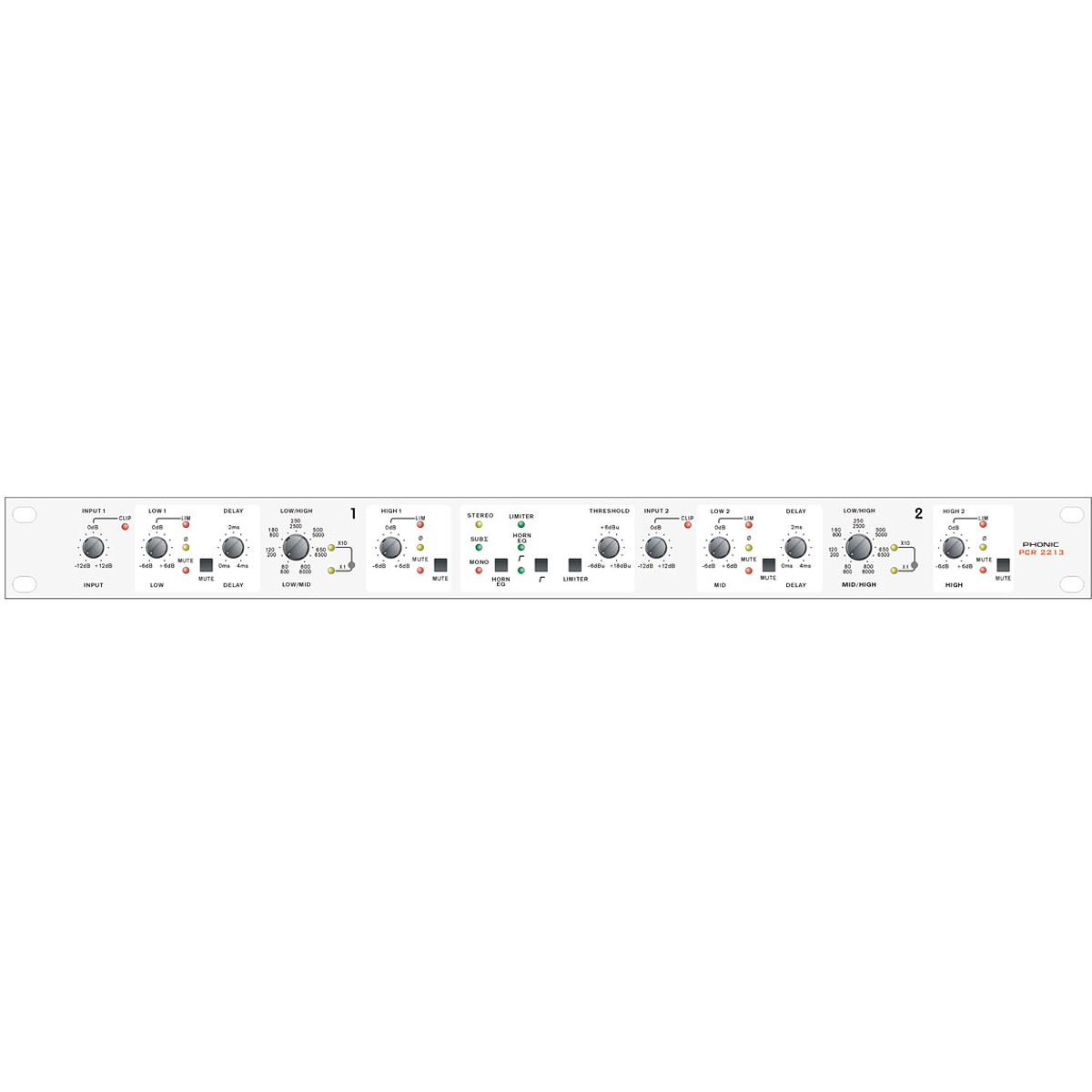

Phonic PCR 2213 2-way Stereo or 3-way Mono Active Crossover

The Phonic PCR 2213 is a professional 2-way stereo or 3-way mono, 24 dB/octave crossover for any application where an active crossover multi-way speaker system is used.

All outputs incorporate a limiter, mute switch, and phase invert button for maximum control. The PCR 2213 also features balanced XLR inputs and outputs, RF and subsonic input filters, and a switchable horn EQ to compensate for high frequency roll off.

Features:

• Stereo 2-way or mono 3-way operation
• 24 dB/octave Linkwitz-Riley filters with zero phase error at crossover frequencies
• Perfect flat summed amplitude response at all crossover frequencies
• Independent limiters on all outputs with pre-defined time parameters
• Latching mute push buttons on all outputs, vital during setting up and troubleshooting
• LED indication on all important switching functions for easy status identification
• Crossover frequencies continuously variable from 80 - 8000 Hz
• Time/phase alignment via polarity switches and 4 ms time delay controls
• Switchable horn EQ curve to compensate the HF roll-off
• RF and Subsonic input filters
• High precision components and potentiometers ensure excellent quality and accuracy of settings
• Balanced XLR inputs and outputs
