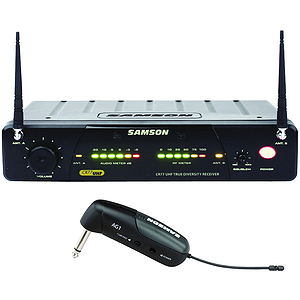

Samson Airline 77 Wireless System for Guitar - right-angle plug for end-mount inputs

The cutting edge in wireless technology -- now you can go wireless without getting weighed down by those cumbersome body packs! The Samson Airline 77 System features a true diversity receiver at an affordable price!

Samson invented the wireless guitar plug-in transmitter. Widely imitated; but never duplicated. Less than half the size of conventional body packs, Airline miniaturized transmitters run on a tiny triple-A battery with 14-hour battery life. They feature an array of on-board controls: A Power On/Off and Mute switch, red/green LED for Power On/Off, a Peak LED and an Input Level control for different pickups. And UHF (Ultra High Frequency) means clearer frequencies with less interference

The heart of Airline 77 is the CR77 Receiver. This true-diversity half-rack unit with PLL frequency control works with all of the Airline transmitters. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference.

This package features a transmitter with right-angle 1/4" input plug to fit end-mount, Gibson-style instruments.

Receiver Specifications:

• Type of Reception: Single Superheterodyne, True Diversity
• Oscillation Type: Synthesized PLL Frequency Control
• D-emphasis: 50 isec
• IF Frequency: 10.7 MHz
• Antenna: 1/4 Wavelength Rod
• In/Out: DC Inlet, Balanced Output, Unbalanced Output
• Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)
• Level Controls: Volume, Squelch
• Operating Voltage: 12 Volts + 10 %
• Current Consumption: 160 mA (at all LED lights)
• Receiving Frequency Range: 801 - 805 MHz
• Sensitivity: 18 dBi @ THD 2%
• Squelch Sensitivity: 0 - 40 dBi (Adjustable)
• Selectivity: ± 150 kHz (AF Out Ratio -60 dB)
• S/N Ratio (Overall): 90 dB (w/ IHF-A filter)
• Residual Noise: 90 dBv (w/ IHF-A filter)
• Band Mute: ± 50 kHz / ± 100 kHz (RF IN: 46 dBu EMF)
• AF Frequency Response: 50 Hz - 15 kHz (± 3 dB overall)
• Audio Output Level - Unbalanced: 0 dBv
• Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch Selectable
• Audio Output Impedance/Unbalanced: 5 k Ohms
• Audio Output Impedance/Balanced: 600 Ohms

• RF Output Power: (5mW) -4dB Minimum, +3dB Maximum
• Frequency Stability: -40kHz Minimum, 40kHz Maximum
• Spurious: 1iW
• Pre-emphasis: 50 isec
• Maximum Input Level: +2 dBv
• Input Impedance: 2K ohms THD < 2% (1 kHz deviation 15kHz)
• Audio Frequency Response: 50Hz - 15kHz (±3.5 dB)
• Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
• Current Consumption: 60mA Typical
• Battery Life: 14 Hours (AAA size battery)
• Antenna: Permanently attached 1/4 wave length wire
• Controls: Power Switch, 15 dB Pad Switch
• Indicators: Power On (LED Flash), Low Battery (LED On when battery less than 1.1V)
