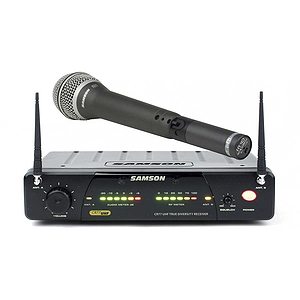

| Wireless System. Made by Samson. (EM.SW7ASHX)
Total vocal freedom, with no bulky belt packs. The Airline 77 handheld comes with a Samson Q7 dynamic microphone. The finest Neodymium handheld dynamic microphone we make. Designed for professional-level music performance, there is no application it cannot handle. The super-compact AX1 Handheld Transmitter plugs directly into the XLR jack of the Q7 (or any dynamic mic). So small and light weight, you’ll hardly know it’s there. The heart of Airline 77 is the CR77 Receiver. This true-diversity half-rack unit with PLL frequency control works with all of the Airline transmitters. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference. Receiver Specifications: - Type of Reception: Single Superheterodyne, True Diversity
- Oscillation Type: Synthesized PLL Frequency Control
- D-emphasis: 50 ìsec
- IF Frequency: 10.7 MHz
- Antenna: 1/4 Wavelength Rod
- In/Out: DC Inlet, Balanced Output, Unbalanced Output
- Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)
- Level Controls: Volume, Squelch
- Operating Voltage: 12 Volts + 10 %
- Current Consumption: 160 mA (at all LED lights)
- Receiving Frequency Range: 801 – 805 MHz
- Sensitivity: 18 dBì @ THD 2%
- Squelch Sensitivity: 0 – 40 dBì (Adjustable)
- Selectivity: ± 150 kHz (AF Out Ratio -60 dB)
- S/N Ratio (Overall): 90 dB (w/ IHF-A filter)
- Residual Noise: 90 dBv (w/ IHF-A filter)
- Band Mute: ± 50 kHz / ± 100 kHz (RF IN: 46 dBu EMF)
- AF Frequency Response: 50 Hz – 15 kHz (± 3 dB overall)
- Audio Output Level - Unbalanced: 0 dBv
- Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch Selectable
- Audio Output Impedance/Unbalanced: 5 k Ohms
- Audio Output Impedance/Balanced: 600 Ohms
Includes power supply and carrying case Customers who bought this item also bought:
