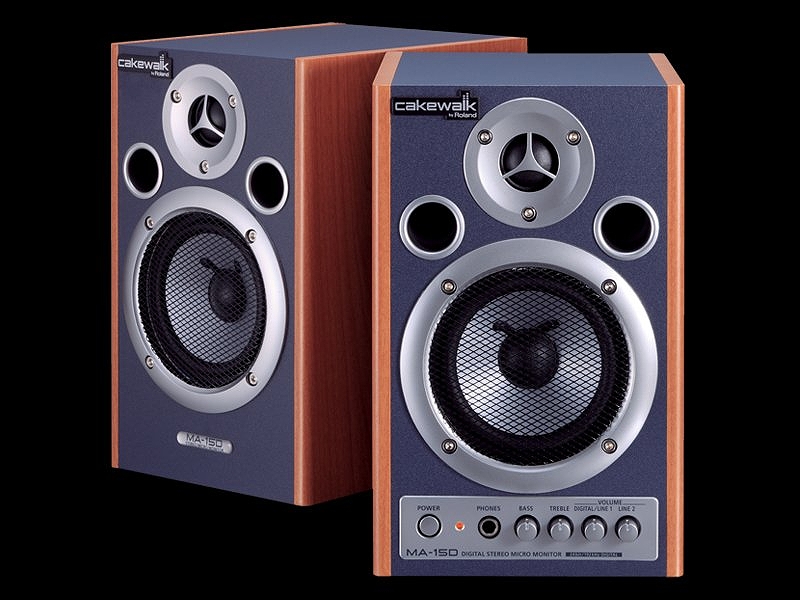

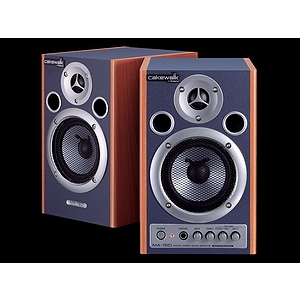

Cakewalk MA15D-B Digital Studio Monitor Speakers - Black

MA-15D: Digital Stereo Monitors With Bass Enhancer

The MA-15D Digital Stereo Monitors are ideal for a number of professional and consumer uses. They are great options as studio reference monitors or as a second set of monitors to use in a surround sound configuration. The MA-15D's offer a wide-range spectrum and crystal-clear audio reproduction.

The MA-15Ds feature a built-in Bass Enhancer, which operates on psycho acoustic principles that converts low frequencies into a series of overtones the human ear cannot distinguish from the original low frequencies. This allows the listener to perceive bass frequencies outside of the normal range of the speaker cone, without overdriving the woofer. With the Bass Enhancer the MA-15Ds offer a strong low-end in a very compact set of reference speakers. In addition the MA-15Ds offer a Sub-Out port, to connect a sub woofer.

The MA-15Ds accept input from digital sources through either the coaxial or optical S/PDIF ports, supporting up to 24-bit/192kHz sources. With this, you can connect digital sources directly to your speakers, keeping an unadulterated audio signal all the way to the power amplifier in your speakers. Hear exactly what you have recorded!

The MA-15Ds offer conveniently placed Volume and Tone controls. While a large studio setup typically uses a mixer to control output level to the speakers, compact desktop setups can rarely afford the space a mixer requires. This is not an issue with the MA-15Ds, as you can adjust your output volume and tone right on the front of the speaker.

You can also connect two different sources directly into the MA-15Ds, allowing you to listen to audio from any two line-level sources. You can have both your computer and your stereo connected to the MA-15Ds, for example. The MA-15Ds offer independent volume control for each of these inputs, effectively taking the place of a small desktop mixer for monitoring.

You can also plug headphones directly into the MA-15Ds and mix without disturbing other people. Plugging in headphones automatically defeats the speakers, allowing you to mix without disturbing others,and without having to disconnect anything in your setup.

The MA-15Ds are also magnetically shielded for use in close proximity to your computer monitor without interference.

Features:

• Pair of 15W+15W Powered Desktop Monitors
• 100 mm (4") Woofers & 50 mm (2") Tweeters with 2-Way Bass Reflex Enclosure
• Genuine Wood Cabinets
• Keep pristine digital sound, up to 24-bit/192 kHz, with Optical and Coaxial S/PDIF Inputs
• 3 Input Sources: 1/8" Line-in, RCA (L/R), and Optical and Coaxial S/PDIF
• Bass Enhancer
• Independent Bass, Treble, and Volume 1 & 2 Controls
• 1/4" Headphone Jack
• Magnetically-shielded
• Sub Woofer Output for Extended Low Frequencies
• Available in Black or Blue/Natural

Specifications:

Rated Power Output

• 30 W (15 W + 15 W)

Speaker Units

• Woofer: 100 mm/3-15/16" (Magnetically-Shielded)
• Tweeter: 50 mm/2" (Magnetically-Shielded)

Frequency Range

• 70 Hz to 20 kHz

Nominal Input Level

• Line 1: -10 dBu
• Line 2: -10 dBu

Input Impedance

• 20k ohms

Controls

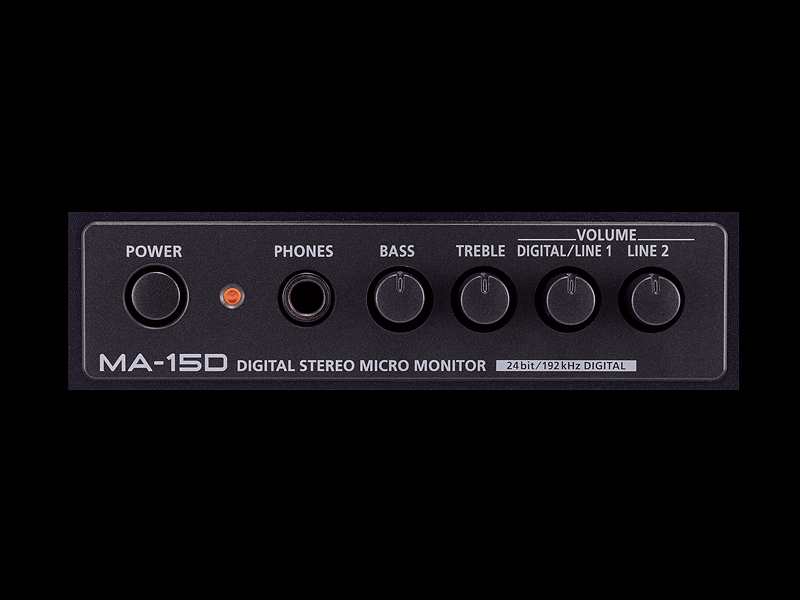

Right Speaker Front

• BASS Control Knob
• TREBLE Control Knob
• VOLUME Knob x 2
• VOLUME 1 (digital input + line 1)
• VOLUME 2 (RCA phono)
• POWER Switch

Right Speaker Rear

• BASS ENHANCER Switch
• DIGITAL INPUT SELECT Switch

Connectors

Right Speaker Front

• Headphones Out: stereo 1/4"

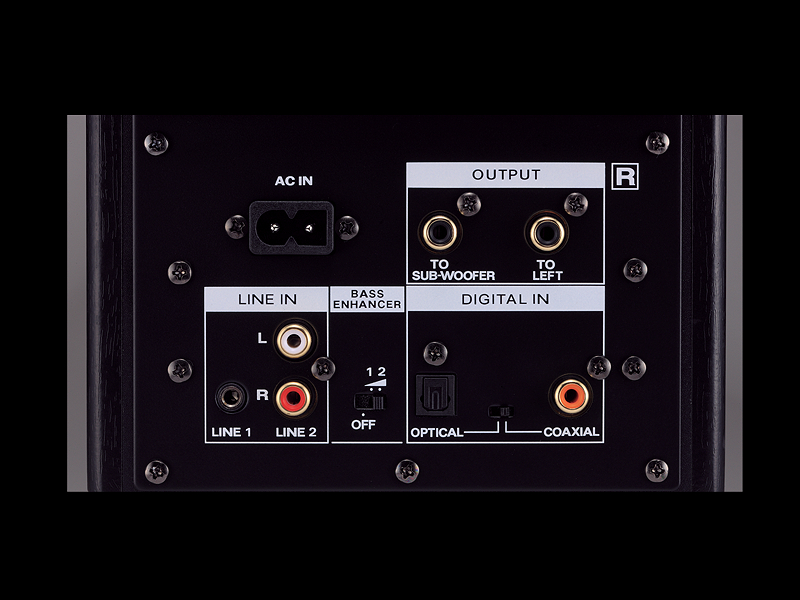

Right Speaker Back

• Line 1 (Left/Right): stereo mini
• Line 2 (Left/Right): RCA
• Output to Left Channel: RCA
• Output to Subwoofer: RCA

Left Speaker Rear

• Left Channel Input: RCA phono

Digital Input Section

Sampling Rate

• 32 kHz
• 44.1 kHz
• 48 kHz
• 96 kHz
• 192 kHz

D/A Converter

• 24-bit

Enclosure

• 2-way Bass-reflex, Wood Cabinet

Indicator

• Power Indicator
• Bass Enhancer Indicator

Power Supply

• AC: 117V, 220V, 230V, 240V
• 50/60 Hz

Current Consumption

• 45 W

Accessories

• Owner's Manual
• Speaker Cable (RCA phono)
• Conversion Cable (Stereo Mini-RCA)
• Power Cord
• Rubber Feet (4)

Size and Weight (Right)

• Width: 159 mm/6-5/16"
• Depth: 222 mm/8-3/4"
• Height: 250 mm/9-7/8"
• Weight: 5.0 kg/11 lbs 1 oz

Size and Weight (Left)

• Width: 159 mm/6-5/16"
• Depth: 215 mm/8-1/2"
• Height: 250 mm/9-7/8"
• Weight: 2.5 kg/5 lbs 9 oz

Please note: In the spirit of continual product improvement, specifications and features are subject to change without notice.
