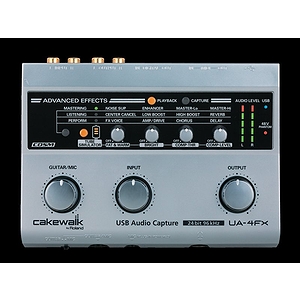

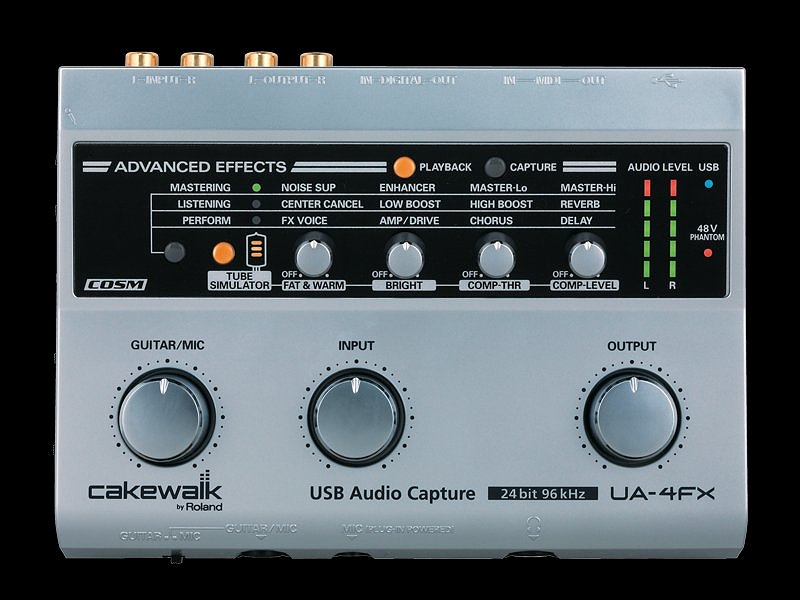

| USB Audio & MIDI Interface with Recording Software. Made by Cakewalk. (ST.CW-UA4FX)
UA-4FX: USB Audio Interface with FX for Guitarists & Singer/Songwriters for Mac and PCThe UA-4FX is a compact and portable 24-bit/96 kHz USB audio interface featuring genuine Roland COSM® preamp emulation technology and high quality effects. The UA-4FX provides mobile recording, built-in effects, and great sound in a compact package making it ideal for guitarists, singer/songwriters, or any musician on the go.High-quality Audio If you demand pristine performance, the UA-4FX can handle audio at up to 24-bit/96kHz resolution. Send audio in and out of the UA-4FX via its analog I/O or, for the ultimate in high-end audio quality, take advantage of its S/PDIF optical output. Windows users can use the optical output for Dolby Digital or DTS 5.1 Surround output as well. Built-In Effects Great audio and versatile MIDI combined with a quality suite of built-in effects make the UA-4FX an irresistible package for computer-recording enthusiasts on a budget. Why pay extra for outboard or plug-in effects when the UA-4FX provides a quality, low-latency COSM tube mic-preamp simulator, multi-band compressor/limiter for mastering, amp-simulator and distortion/chorus/delay for guitar, center cancel, reverb, noise suppressor, and more. Cross-Platform Compatibility Good news for both Mac and PC users — the UA-4FX is cross-platform compatible. It supports WDM, ASIO 2.0, and Mac OS X Core Audio formats. Enjoy low-latency audio performance on both platforms! Low-Latency MIDI Great audio is only part of what makes the UA-4FX a star performer. Connect your synths, modules, and controllers via MIDI, and enjoy ultra-fast,stable performance thanks to FPT (Fast Processing Transmission) technology. A single USB cable provides both the MIDI and audio links between your computer and the UA-4FX. Portable Power The UA-4FX receives its power via USB, which means no AC adapter is required. Great for musicians on the go! Bundled Software For Windows-based musicians just getting started, UA-4FX includes the Cakewalk Production Plus Pack, a feature-rich recording software bundle consisting of SONAR LE, Project5 LE, and Dimension LE for PC-based recording. The CD-ROM also includes the latest ASIO, WDM, and MME drivers for Windows XP and Vista (32-bit versions), plus Core Audio drivers for Mac OS X. Features - Record and playback high-resolution audio of your music up to 24-bit/96 kHz
- Phantom powered XLR Input for use with condenser microphones — perfect for vocals
- 1/4" Hi-Z input designed to get a better sound when recording electric guitar and bass
- Tube Mic Preamp Simulator provides warm tones through Roland's COSM® Technology
- 14 Onboard Advanced FX: Amp Simulator, Chorus, Delay, Reverb, Enhancer, more
- MIDI in/out ports for MIDI recording, playback, control, and sequencing
- USB bus powered; no AC adaptor required - ideal for mobile use
And more! - 1/8" Electret input for condenser microphones, 1/4” input for dynamic microphones
- Optical S/PDIF I/O for direct connection of digital audio devices
- Low-latency drivers for responsive multitrack recording:
- WDM (Windows) / ASIO 2.0 (Windows) / Core Audio (Mac OS X)
- Fast and stable MIDI transmission using proprietary FPT advanced driver technology
- 5 segment stereo LED Meters for mixing and checking levels
- Dolby Digital & DTS 5.1 channel surround sound through S/PDIF output (Windows only)
- Digitize your vinyl albums and cassette tape collection
SpecificationsNumber of Audio Record/Playback Channels - Record: 1 stereo pair
- Playback: 1 stereo pair
- Full duplex (except 96 kHz)
Signal Processing - Computer Interface: 24-bit
- AD/DA Conversion: 24-bit (linear)
- Internal Processing: 32-bit (Effect processing)
Sampling Frequency - Digital Output: 44.1/48/96 kHz
- Digital Input: 44.1/48/96 kHz
- AD/DA Conversion: 44.1/48/96 kHz
*ADVANCE SWITCH = OFF: 44.1 kHz only Frequency Response - 96 kHz: 20 Hz to 40 kHz (+1 dB/-2 dB)
- 48 kHz: 20 Hz to 22 kHz (+1 dB/-1 dB)
- 44.1 kHz: 20 Hz to 20 kHz (+1 dB/-1 dB)
Nominal Input Level - Line Input: -10 dBu
- MIC Input (XLR): -45 to -12 dBu
- MIC Input (non-XLR): -45 dBu
- GUITAR Input: -30 dBu
Nominal Output Level - Line Output: -10 dBu
- Residual Noise Level (input terminated with 1 k ohms, MAIN VOLUME: 0 dB, Monitor: OFF, IHF-A typ.): -105 dBu or less (SN ratio: 108 dB, typ.)
Interface - USB
- Optical Digital Input/Output (conforms to IEC60958 consumer format: PCM/AC3)
Effects Mastering - Noise Suppressor, Enhancer, Multiband Compressor/Limiter
Sound Enhancement- Center Cancel, High Boost, Low Boost, Reverb
Performance- Voice-change, Amp-Simulator, Distortion, Chorus, Delay
Tube-amp simulator- Tube-Amp-Simulator, Multiband, Compressor/Limiter
Connectors - Line Input (Left/Right): RCA
- MIC Input: XLR (balanced, phantom power +48 V)
- MIC Input: 1/8" (Mini jack, plug-in powered)
- GUITAR/MIC Input: 1/4" phone
- Line Output (Left/Right): RCA
- Headphones Out: Stereo 1/4"
- Digital Input: Optical
- Digital Output: Optical
- MIDI Connectors: IN/OUT
- USB Connector: USB Type B
Power Supply - Supplied from the computer
Current Draw Accessories - Owner's Manual
- Advanced Operation Manual
- USB cable
- Driver CD-ROM
- SONAR LE CD-ROM
Size and Weight - Width: 171 mm | 6-3/4"
- Depth: 127 mm | 5"
- Height: 44 mm | 1-3/4"
- Weight: 0.3 kg | 0 lbs 12 oz
System Requirements Windows - OS: Microsoft® Windows Vista® / Windows® XP Home / XP Professional SP2 or later*
- Computer: Windows compatible PC equipped with a USB port
- CPU/Clock: Pentium® Processor 1 GHz or higher
- Memory(RAM): 256 MB or more (1 GB or more is recommended)
* This product does not support Windows XP Media Center Edition or XP Professional x64. Macintosh - OS: Mac OS X 10.3.9 or later
- Computer: Apple® Macintosh® series with on-board USB port
- CPU/Clock: Intel Processor or PowerPC G4/867 MHz or higher
- Memory(RAM): 256 MB or more (512 MB or more is recommended)
Cakewalk Production Pack Software - Operating System: Windows XP/Vista only
- Processor: Intel® Pentium® 4 1.3 GHz or AMD Athlon™ XP 1500+ RAM - 256 MB RAM
- Hard Drive: 100 MB free hard disk space
- Screen Resolution: 1024 X 768, 16-bit color CD-ROM drive (for installation) Windows-compatible audio card/interface
* USB 2.0 Compatible. Works as a USB 1.1 device without changing the specifications and performance. * Macintosh computers running Microsoft Windows are not supported. * This product has been tested on representative computers that meetthe system requirements, but we cannot guarantee that it will operateon any computer that meets these requirements. Please be aware thateven under the same conditions, differences in the operatingenvironment may produce differences in processing capability. *In the interest of product improvement, the specifications and/orappearance of this product are subject to change without prior notice. * 0 dBu = 0.775 Vrmsr Browse Similar Items in:
