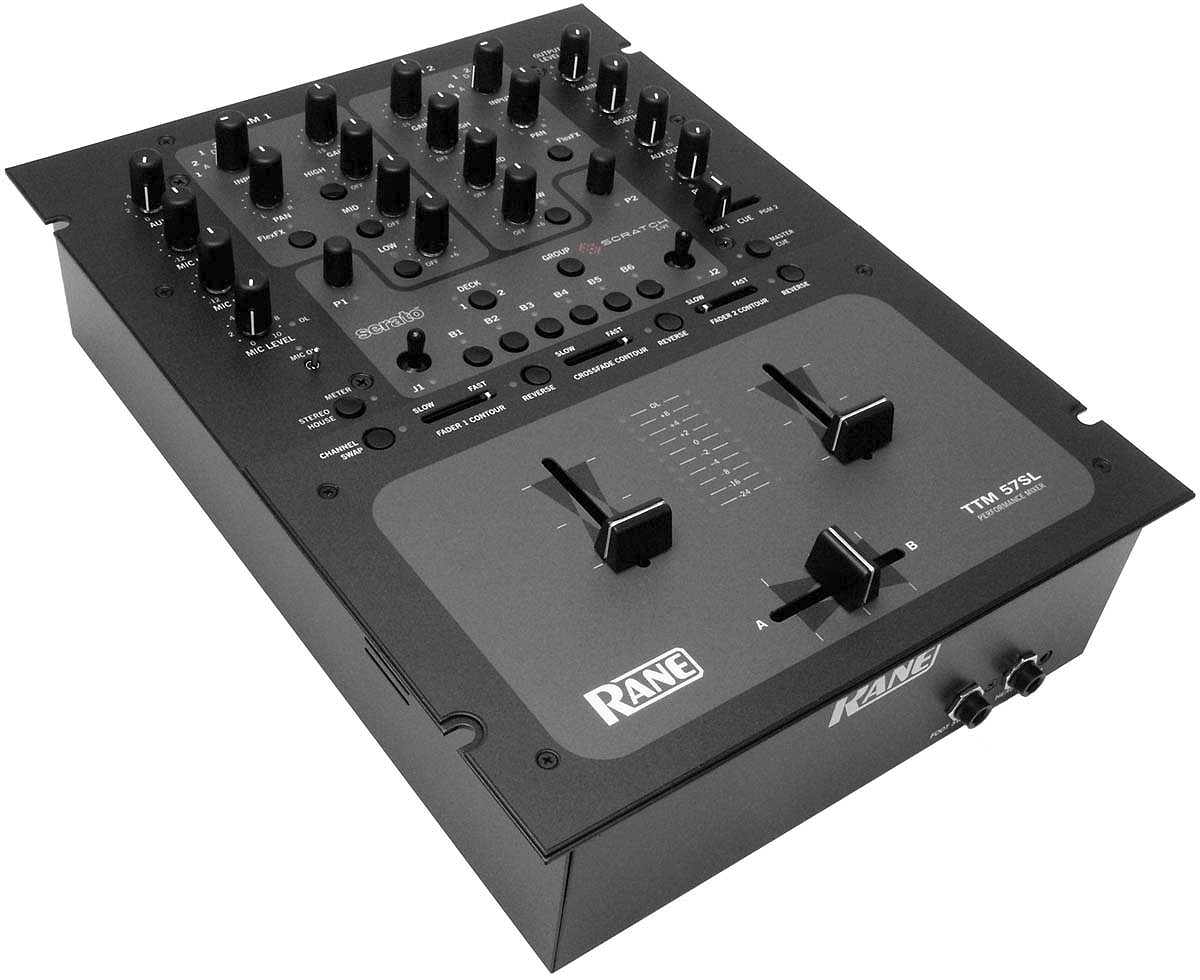

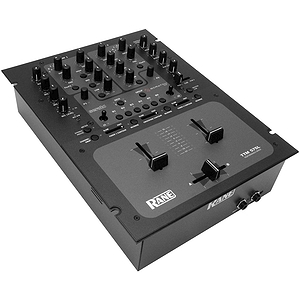

Rane TTM 57SL Performance Mixer with Serato Scratch LIVE Software

The TTM 57SL combines the best Rane and Serato have to offer in a single, high performance mixer. The Rane TTM 57SL fully integrates mixer hardware, software, and software controls in one powerful package. The TTM 57SL combines all the performance and features of the Rane TTM 56 with Serato Scratch LIVE software. But Rane didn't stop there - they also included internal effects with six stereo insert points.

The TTM 57SL comes with two pieces of control vinyl, two control CDs, Scratch LIVE software, and an extensive color manual.

Control Vinyl and CDs

• Lowest latency vinyl emulation system on the market
• Side A: 10 minutes plus Vinyl Select area
• Side B: 15 minutes
• Continuous control signal allows smooth accurate scratching
• Innovative positioning system allows fast, accurate needle drops
• Visible time markers on vinyl
• Includes two 15-minute control CDs

• PGM 1 selects Analog 1, Analog 2, Digital 1, Digital 2
• Select Analog 1 or Analog 2 for Vinyl / CD Control Input 1
• PGM 2 selects Analog 3, Analog 4, Digital 1, Digital 2
• Select Analog 3 or Analog 4 for Vinyl / CD Control Input 2
• All analog inputs are phono / line switchable (rear panel)
• Input Gain and Left / Right Pan controls
• 3-band, full-cut Tone controls with Kill switches
• Assign PGM 1, PGM 2 or both to the external FlexFx loop

• Non-contact magnetic position sensor technology. No travel noise - No bleed - Ever!
• Independent Contour and Reverse controls with Channel Swap

• On switch
• Level control
• High/Low Tone controls

• Independent Level controls
• Main Out on XLR (balanced)
• Booth Out on 1/4" TRS (balanced)
• Auxiliary Out on RCA (unbalanced)

• Deck / Effect 1-2 switch
• Group switch maps functions to controls
• B1 - B6 programmable switches / cue points
• P1 - P2 programmable encoders with push switches
• J1 - J2 programmable joysticks with push switches /transform controls
• Programmable footswitch input (Up to 3-button control; foot switch not included)

• PGM 1 Pre-fader
• PGM 1 Post-fader
• PGM 2 Pre-fader
• PGM 2 Post-fader
• Main Mix
• Auxiliary Input Bus (includes Mic)

• PGM Cue Pan, Master Mix select and Headphone Level control
• Both 1/4" and 3.5mm headphone output jacks

• 8 Channels of Streaming Audio
• 16 bit / 44.1 kHz Streaming Audio
• Four channels from computer
• Four channels to computer
• ASIO and Core Audio Drivers included

• Absolute Mode: exact reproduction of record movement, needle drop through tracks just like normal vinyl
• Relative Mode: skip free scratching, jump to cue points, and pitch bend buttons combined with turntable control
• Internal Mode: mix with just your laptop using features modeled on DJ CD players. On-the-fly looping, save up to 9 loops per track
• Auto mode: play a sequence of tracks or entire "crate" contents automatically
• Vinyl select mode: Use your turntable to pick the next song without touching the computer keyboard

• Full track overview: Quickly find where the beat drops, find breakdowns and choruses
• Variable zoom waveforms centered around current position; Display horizontally or vertically
• Waveform colored by frequency to distinguish instruments visually
• Visual markers can be set at important cue points, triggered from the keyboard or the TTM 57SL, and stored within each track
• Beat display emphasizes track transients to visually assist beatmatching
• Tempo display assists rapid track tempo-matching

• Large on-screen record label shows elapsed time and time remaining
• Coarse and fine pitch controls, bend control assists in beat matching
• Censor (quick reverse with no timing loss) can remove expletives on the fly
• Turntable lock: only allows loading on a stopped deck to prevent accidental track changes

• Sample or record directly from vinyl
• Record from Pre- or Post- fader PGM 1 or PGM 2, Master Mix, Aux Input or Mic Input (to WAV or AIFF formats)
• Sample from the mic and instantly scratch as if it were vinyl

• Play File formats: Fixed and VBR MP3, AIFF, WAV, OGG Vorbis
• Adjustable gain setting per song file
• Play tracks direct from CD and CD-ROM
• Full iTunes integration: Use your playlists and iTunes library
• Browse music collection by Artist, Album, BPM or Genre
• Optional album art display
• Intuitive search. Edit ID3 tags with full Unicode support
• Crate system for organizing sets
• Drag & drop track importing, no MP3 preprocessing required
• Add whole directories of music files on the fly: tags are read in the background without interruption

• Extensive keyboard shortcuts for fast access to key functions
• Single key song loading. Single key deck swapping
• Instant doubles, load the same track on both decks at the same point for instant flange effect and back-to-backs
• Single key left and right deck operations: play/pause forward/reverse, bend, pitch, cue points
• Hot swap external drives with fast, automatic library merging and retention of crates
• Low power warning when running off a laptop battery
• Latency can be adjusted to match CPU power
• Built-in help and tips in multiple languages
